Rennsteig Tools, Inc. - Four Indent Crimp Tool MicroCrimp 75/76

Main > Products > Crimping > Turned Contacts > Four Indent Crimp Tool MicroCrimp 75/76

Four Indent Crimp Tool MicroCrimp 75/76

	P/N	TBD
Description	Special hand tools for crimping turned male and female contacts for wire sizes 0.03 to 10.0 mm² Makes consistently concentric crimps by synchronously driven jaws Micro setting down to 0.01 mm tolerance Enclosed gauge ensures accurate calibration Locator for exact positioning of 12 different contact types Locator interchangeable and adaptable to appropriate contact type Locator position can be selected on the attached reference sheet Optimal leverage Chrome plated body, red plastic handles Made in Germany by Rennsteig

P/N

TBD

Description

Patented

Special hand tools for crimping turned male and female contacts for wire sizes 0.03 to 10.0 mm²
Makes consistently concentric crimps by synchronously driven jaws
Micro setting down to 0.01 mm tolerance
Enclosed gauge ensures accurate calibration
Locator for exact positioning of 12 different contact types
Locator interchangeable and adaptable to appropriate contact type
Locator position can be selected on the attached reference sheet
Optimal leverage
Chrome plated body, red plastic handles
Made in Germany by Rennsteig

P/N	Finish	Wire Size		Length	Weight
R8750 0000 6	Tool Chrome Plated	0.14 - 6.0 mm2	25 - 10 AWG	9"	1.5 lbs	Request a Quote!
R8760 0000 6	Tool Chrome Plated	1.50 - 10.0 mm2	15 - 7 AWG	9"	1.5 lbs	Request a Quote!
R8750 0401 61	Tool Chrome Plated with Locator in Plastic Case				2.6 lbs	Request a Quote!
R8760 0401 61	Tool Chrome Plated with Locator in Plastic Case				2.6 lbs	Request a Quote!
R8750 0401 0	Standard Locator (for Harting, HTS, Ilme, and similar contacts)				0.2 lbs	Request a Quote!
R8760 0401 0	Standard Locator (for Harting, HTS, Ilme, and similar contacts)				0.2 lbs	Request a Quote!

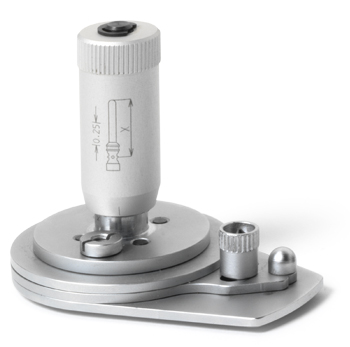

R8750 1701 0	Universal Locator for MicroCrimp 8750 0000 61 and 0760 0000 61				0.4 lbs	Request a Quote!
