Custom Solar Crimp Set "ONE FOR ALL"
 |
P/N | TBD |
|---|---|---|
| Description |
Build your own solar crimp set, with a top-quality Rennsteig solar system crimp tool and the dies and locators of your choice, up to 5 different combinations of die and locator - you decide which ones you need. Description:
(Please look at "Read more") Made in Germany by Rennsteig |

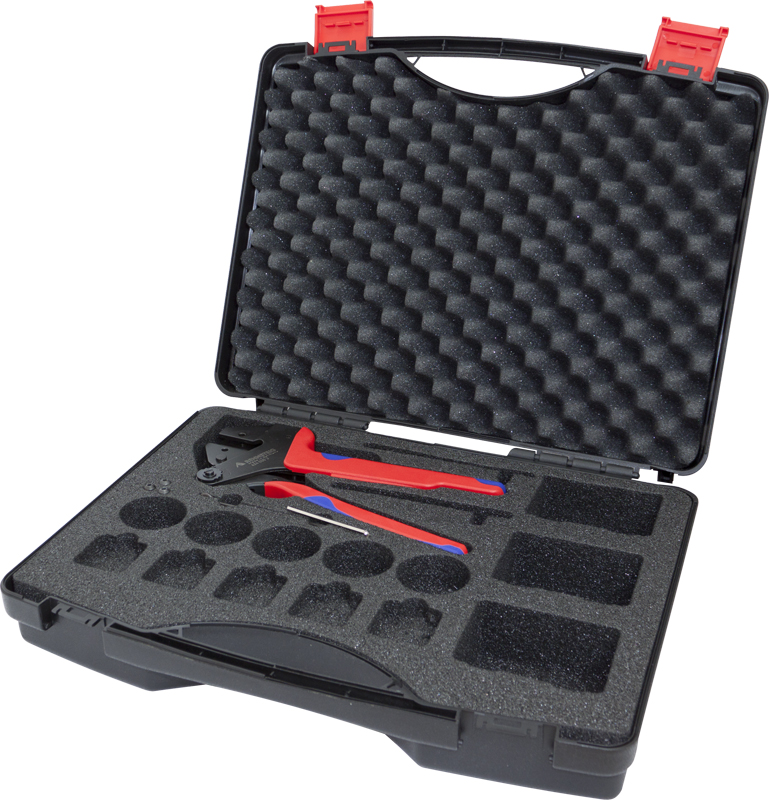

Case include:
- Allan key (2.5 mm)
- Wrench (7 mm)
- 2 Allan screws (M4x10 / M4x16mm)
- and your selected dies or locators
This Case can be configured for the following contacts
| P/N | Item | Application | Max. Wire Size (AWG) | Connector |
|---|---|---|---|---|
| R624 194 3 0 | Die Set only | MC 3 (Solarline 1) | 14/12/10 |  |
| R624 194 0 01 | Locator only | |||
| R624 570 3 0 | Die Set only | MC4 (Solarline 2) | 14/12/10 |  |
| R624 570 0 01 | Locator only | |||
| R624 1194 3 0 | Die Set only | Amphenol H4 | 14/12/10/8 |  |
| R624 1194 0 01 | Locator only | |||
| R624 817 3 0 | Die Set only | Tyco (Solarlok®) | 16/14/12/10 |  |
| R624 817 0 01 | Locator only | |||
| R624 071-1 3 0 | Die Set only | Wieland | 16/14 |  |
| R624 073-1 3 0 | Die Set only | 12/10/8 | ||
| R624 071 0 016 | Locator only (fits for R624 071-1 3 0 and R624 073-1 3 0) | 16/14/12/10/8 | ||
| R624 205 3 0 | Die Set only | Huber+Suhner (Radox® - Twist Lock) | 12/10 |  |
| R624 205 0 01 | Locator only |
