Assembly Tools

Assembly Tool Design

These assembly and auxiliary tools have become indispensable for electromechanics and electricians. Measuring crimp dimensions of crimped connectors, inserting or removing contacts, ITC termination of UTP and STP cables into trunks are typical scenarios in this field.

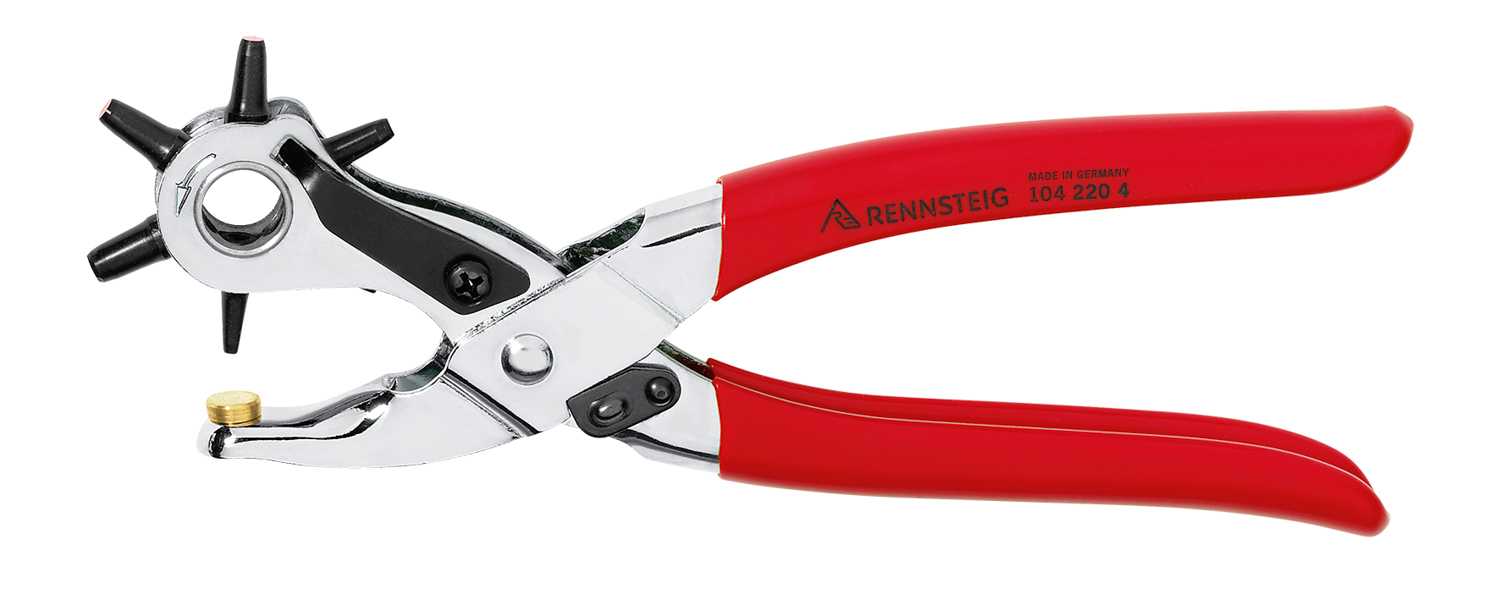

P/N 104 220 4

  • For punching holes in leather, textiles and plastic material
  • With opening spring and locking lever
  • Nickel plated with rubber grips
  • Punched and stamped from high-strength sheet steel
  • With six replaceable punches: 2.0/2.5/3.0/3.5/4.0/5.0 mm dia. (similar to5/64-inch, 3/32-inch, 1/8-inch, 9/64-inch, 5/32-inch, and 13/64-inch)

Request a Quote!

  • For notching plastic skirtings, cases and cable ducts for sanitary and electric installation
  • Available with different cutting profiles and grip lengths
  • Easy shear-action draw cut
  • Neat cut edges, precise cuts in the rubber lips on skirtings
  • Easy handling with automatic spring opening after notching
  • Cutting head of special tool steel
  • Burnished finish
  • Plastic coated grips or two-component handles
  • Solid design and low weight

Hand held wire duct cutter. Will cut width up to 2 1/4 inches. This high quality hand held cutter will produce burr free cuts. The user will experience an evenly cut over the entire blade length. This precise wire duct cutter has ergonomic handles producing less fatigue to the user. The hardened blades are exchangeable.

P/N 103 220 2

  • For punching holes in leather, textiles and plastic material
  • With opening spring and locking lever
  • Powder-coated for reliable protection against rust
  • Punched and stamped from high-strength sheet steel
  • With six replaceable punches: 2.0/2.5/3.0/3.5/4.0/5.0 mm dia. (similar to5/64-inch, 3/32-inch, 1/8-inch, 9/64-inch, 5/32-inch, and 13/64-inch)

Request a Quote!
