P/N TZ-030

Request quote and/or buying option available.

• State-of-the-art thermal wire stripper
• Works with 100V, 115V or 220V
• Will easily handle high-temperature insulations such as PTFE, Tefzel, Teflon, and Silicone Rubber
• Prevents mashing of the conductor strand
• Stripping Capacity: 36 - 18 AWG (depends on configuration)

A unique tool for damage-free insulation removal.

Product Features

• Heating element is completely sealed in a high-temp alloy, preventing oxidation and improving heat transfer efficiency.
• Precision blade alignment ensures defect-free stripping and prevents the stripping head from distorting or losing alignment.
• Minimal blade rotation (15°) reduces potential conductor distortion.
• Adjustable strip length gauge for customizable stripping.
• No maintenance required.
• On/Off switch for easy operation.
• Power indicator light for status visibility.
• Digital temperature control for precise heating.
• User-replaceable fuse for safety and convenience.
• Grounded three-prong IEC plug to satisfy OSHA requirements.

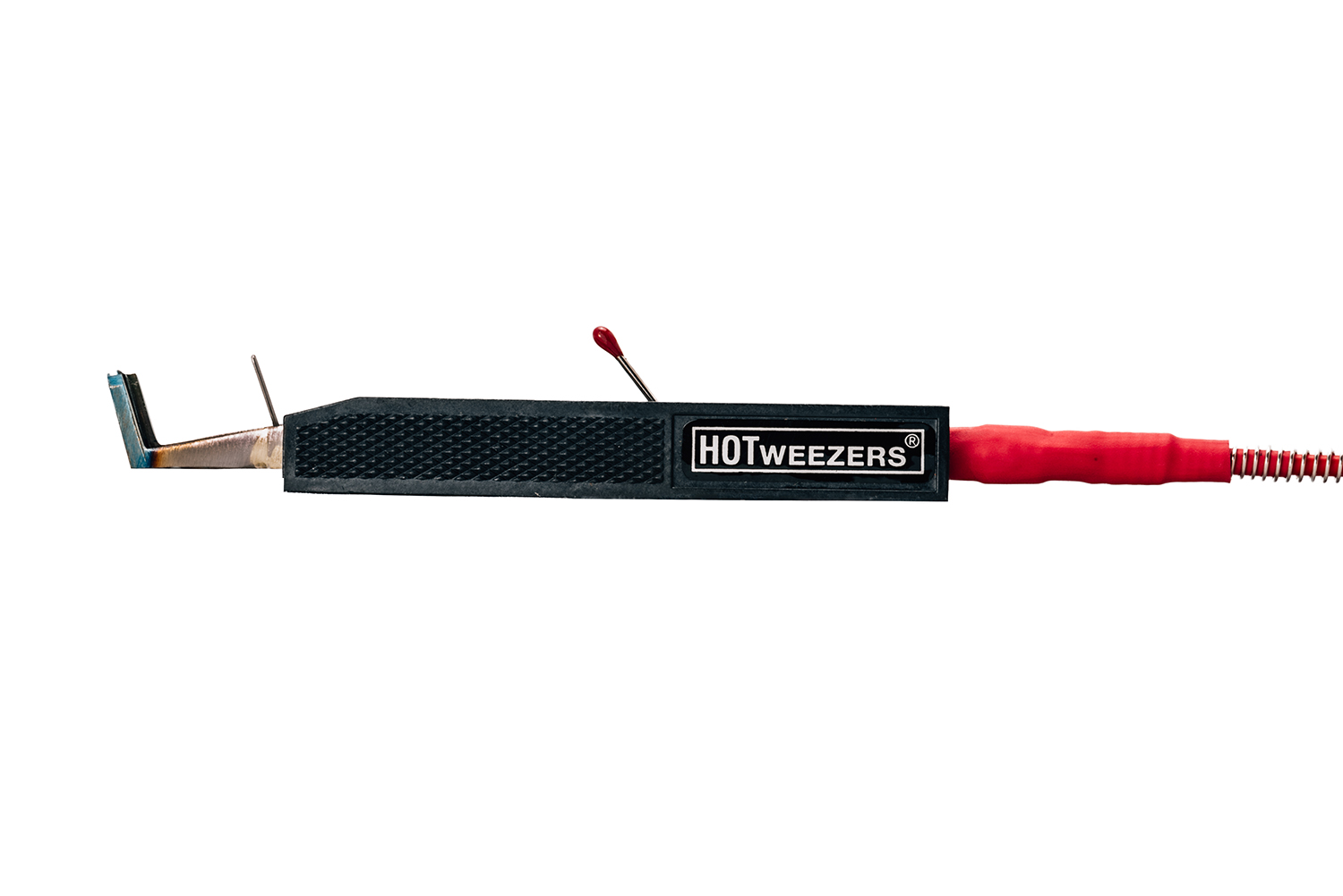

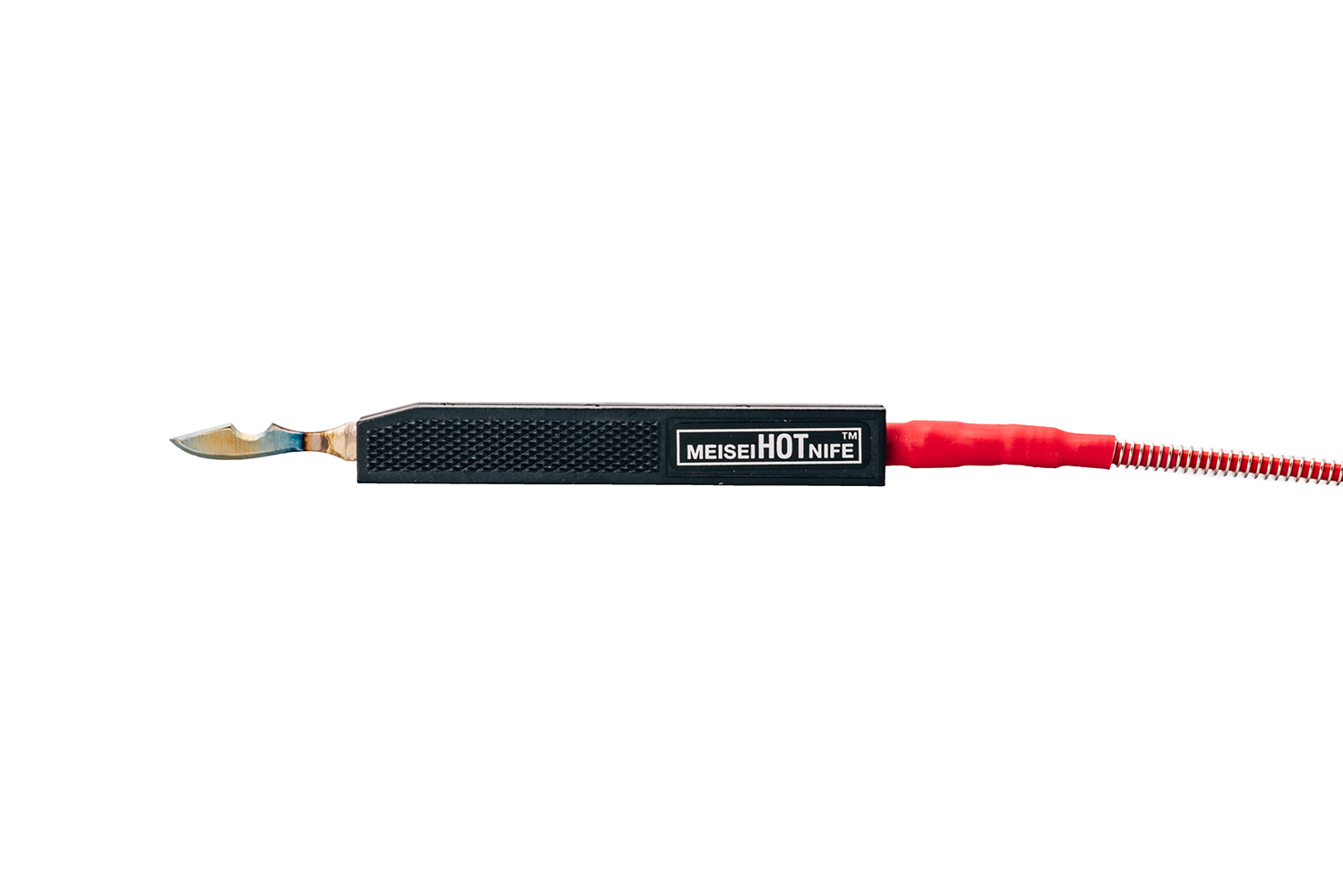

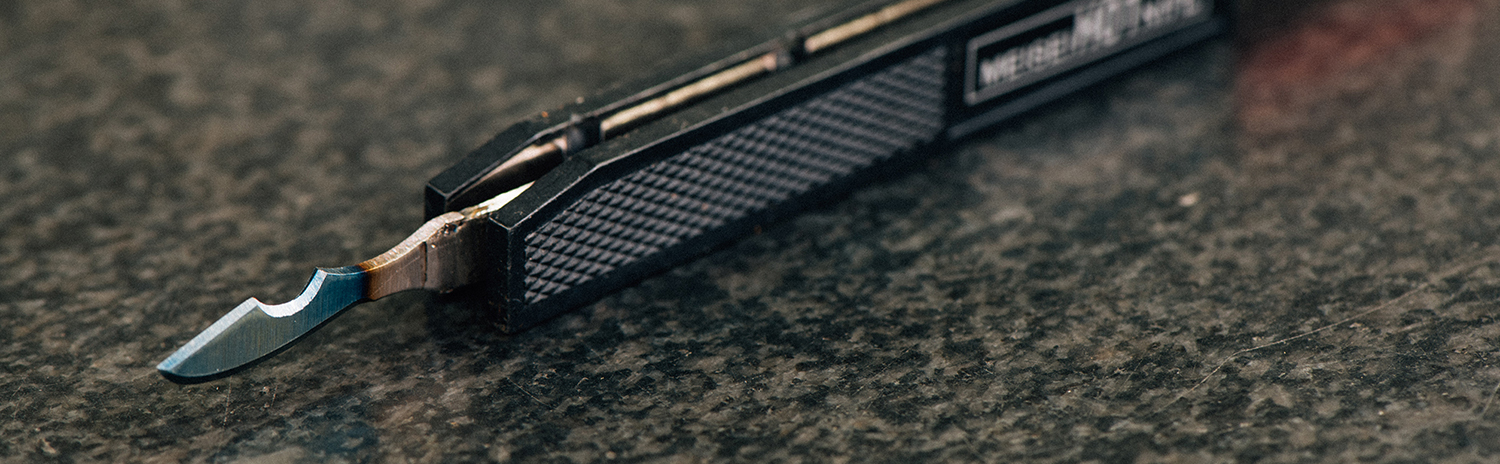

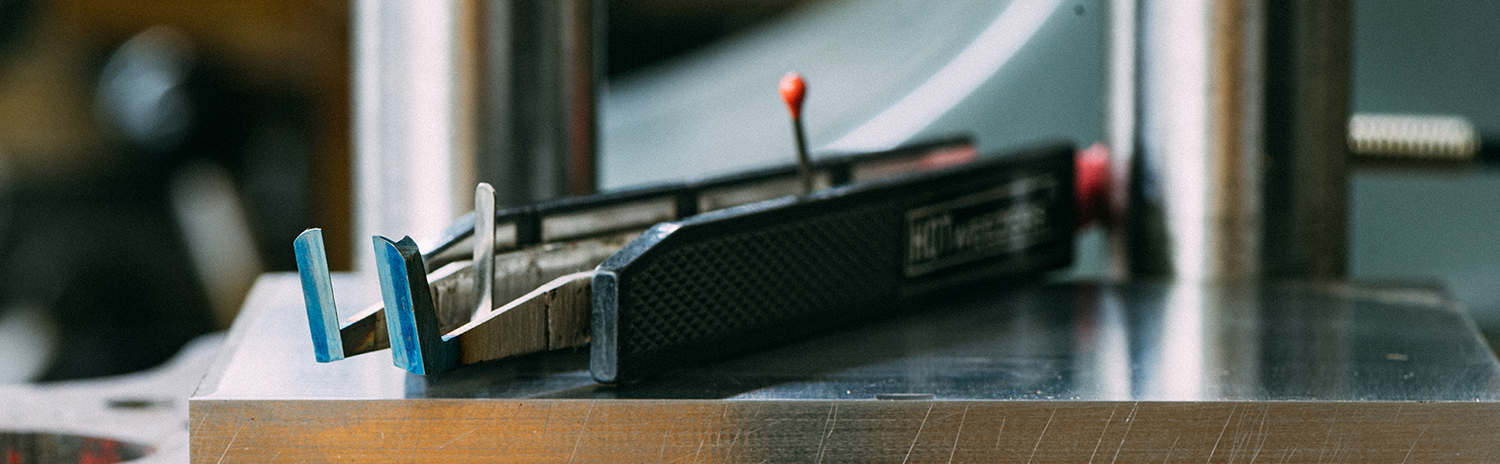

Hotweezer	Hotnife

P/N	TZ-030	TZ-211	TZ-411-36-24	TZ-412-28-18	TZ-413

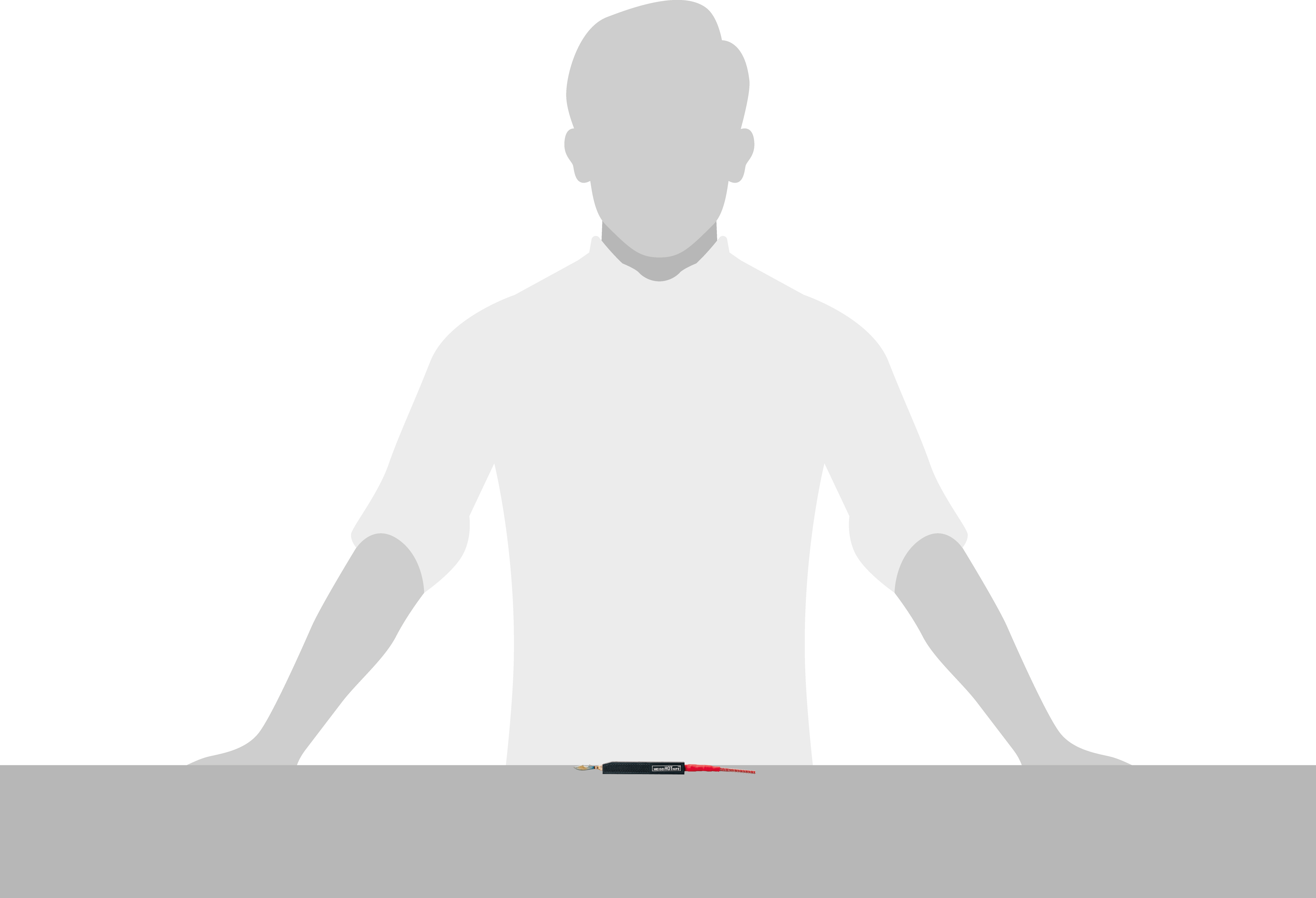

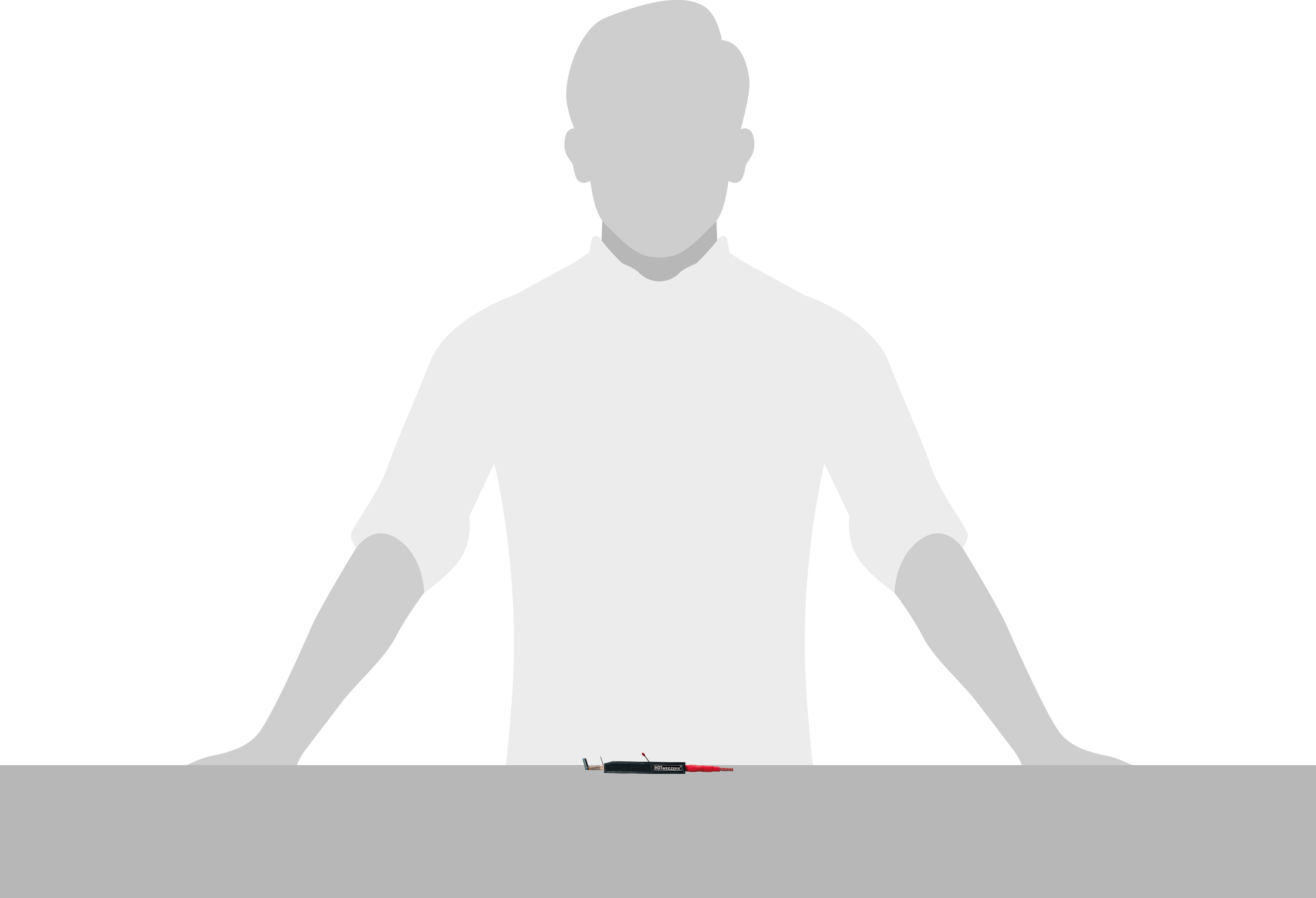

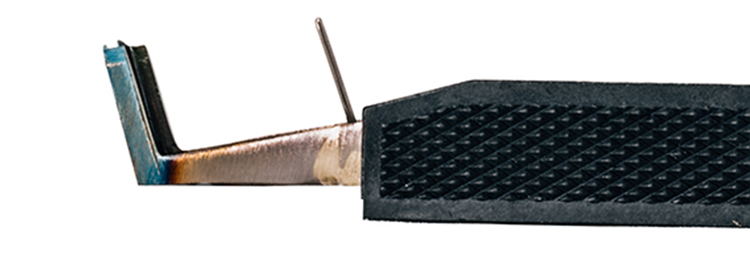

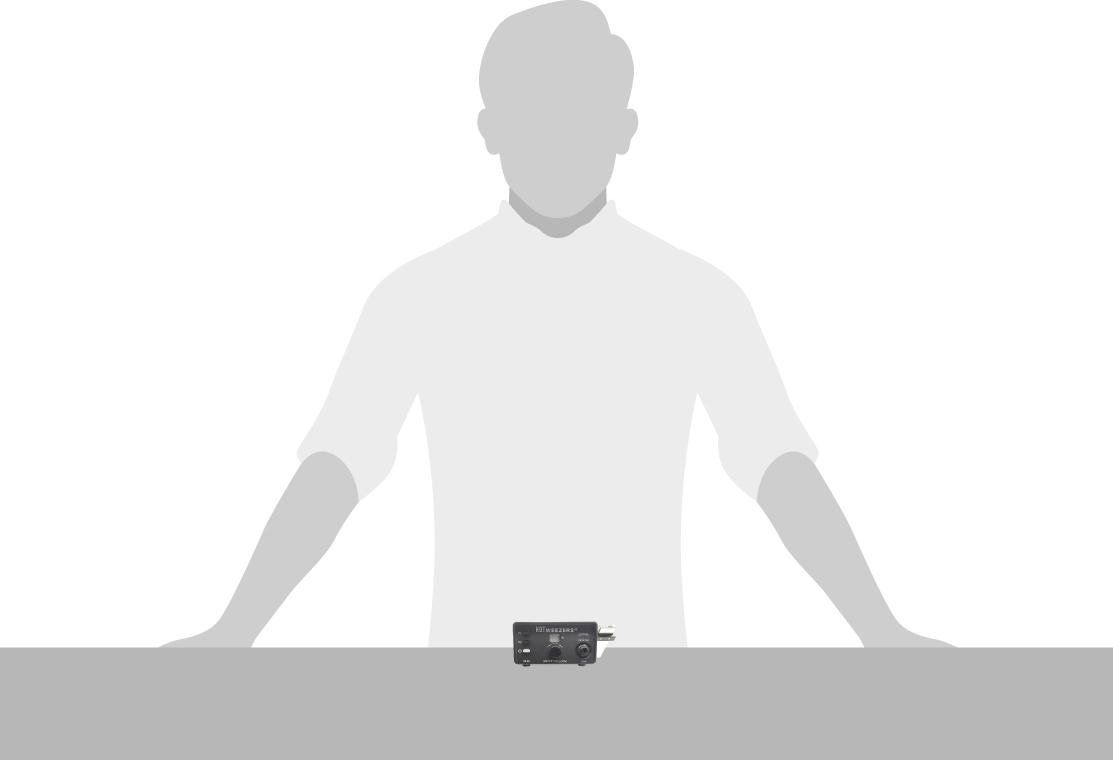

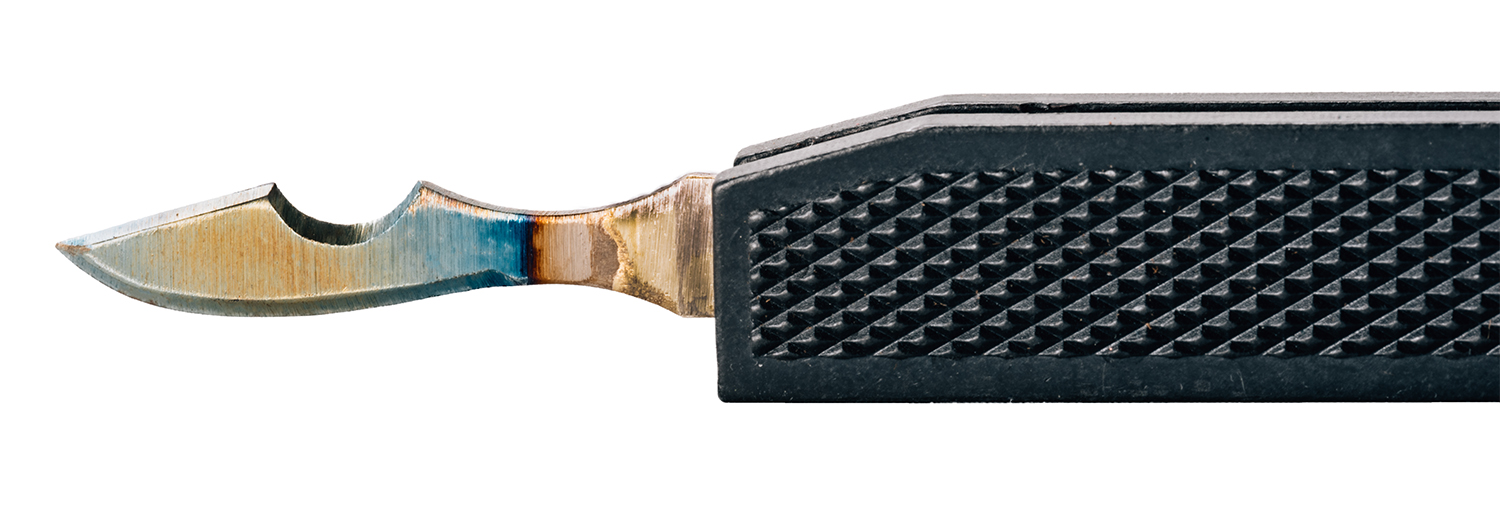

Description	Standard/ESD Power Supply	Hotnife 2.1A	Hotweezer 4.1A	Hotweezer 4.1B	Hotweezer 4.1C
Voltage	100V, 115V or 220V
	AWG 36 - 18	-	AWG 36 - 24	AWG 28 - 18	Flat Blade
Length	3" x 5 ¾" x 5"
Weight	3 lbs.
	Request a Quote!	Request a Quote!	Request a Quote!	Request a Quote!	Request a Quote!

ESD Version available on request.
