Optical Fiber Tools

Optical Fiber Tool Design

Multimedia is an indispensable part of modern life. To cope with the huge amounts of data this involves, data transmission systems use polymer or glass fiber optic cables to transmit digital signals in the form of light. These offer high transmission rates, low damping, high electromagnetic compatibility, small dimensions and light weight.

P/N 8001 0001 3

  • Specialized cutting mode for clean cut edges with no need for polishing
  • Optimal quality of data transfer
  • Diameter to be cut adjustable by adjusting eccentric
  • Optional cutting systems - replaceable after wear
    • P/N 8000 0001 0 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Material: special tool steel

InfoRequest quote and/or buying option available.

P/N 8002 0004 3

  • Stripping without damaging fiber by using a rounded blade
  • Length stop continuously adjustable from 4 to 20 mm
  • Specialized cutting mode for clean cut edges with no need for polishing afterwards
  • 2 different cutting systems optional
    • P/N 8000 0001 0 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Easy handling
  • Tool body Black-Oxide finish, two-component handles
  • Material: special tool steel

InfoRequest quote and/or buying option available.

P/N 8001 0003 3

  • Stripping without damaging fiber by using a rounded blade
  • Length stop continuously adjustable from 4 to 20 mm
  • Spezialized cutting mode for neat cut edges with no need for polishing afterwards
  • 2 different cutting systems optional
    • P/N 8000 0001 0 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Easy handling
  • Tool body Black-Oxide finish, two-components handles
  • Material: special tool steel

InfoRequest quote and/or buying option available.

P/N 8001 0002 3

  • Only for POF applications Ø 2.2 mm
  • Specialized cutting mode for smooth fiber surface, no need for polishing
  • Optimal data transfer
  • Optimal cutting systems replaceable after wear
    • P/N 8000 0001 0 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)

InfoRequest quote and/or buying option available.

P/N 8002 0006 3

  • Stripping and cutting the DUPLEX cable Ø 2.2 mm in one tool available with stripping aid
  • Optimal cable guiding
  • Special POF cutting systems for a very smooth fiber surface, no need for polishing
  • Optimal cutting systems replaceable after wear
    • P/N 8000 0001 0 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Stripping without damaging the fiber by using a specially shaped blade
  • Easy to use, ergonomic design
  • Black-Oxide finish tool body, two-component handles

InfoRequest quote and/or buying option available.

P/N 8001 4000 3

  • Special designed multifunctional tool
  • Cutting, stripping and crimping in one tool
  • Tool can be modified to process various types of contacts like Mitsubishi, Toshiba etc.
  • Safety lock in the crimp range for optimal crimping quality
  • 2 different cutting systems optional
    • P/N 8000 0001 0 - manual blade advance
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Tool Black-Oxide finish, made of special tool steel
  • With ergonomically designed two-component handles

InfoRequest quote and/or buying option available.

P/N 8710 0000 6

  • Special hand tool for crimping contacts of the MOST system
  • Spring mounted lever arrests contact in proper position for crimping
  • Optimal fiber to contact configuration by means of a dedicated locator accommodation
  • Synchronous travel of indenters assures optimal crimping
  • Easy to use, ergonomic design
  • Chrome plated body, ergonomically designed two-component handles

InfoRequest quote and/or buying option available.

P/N 8711 1000 61

  • The one for all portable plastic case includes:

    • Tool to cut and strip Ø 2.3 mm POF cable P/N 8001 0004 3
    • Four indent crimper PEW 8.71 for contacts of the MOST system P/N 8710 0000 6
    • Safety cutting system for replacement P/N 8000 0005 0 0
    • Allan key

InfoRequest quote option available.

P/N 8007 5000 3

  • Designed to strip fiber optic cable down to a diameter of 125 µm
  • Applicable for individual, bundle as well as ribbon fibers
  • The stripper has a fixed, micro-adjusted closing stop
  • Two stripping positions are used for stripping primary and secondary coatings in one tool

InfoRequest quote and/or buying option available.

P/N 8007 1070 6 RT

  • For exposing optical fibers of cut or uncut mini multi-fiber buffer tubes
  • Reliable and repeatable access to fibers without damage
  • Specially designed for inserts hold the buffer tube firmly in place
  • Avoidance of unnecessary cutting of multi-fiber buffer tubes
  • Time and cost-saving processing

InfoRequest quote and/or buying option available.

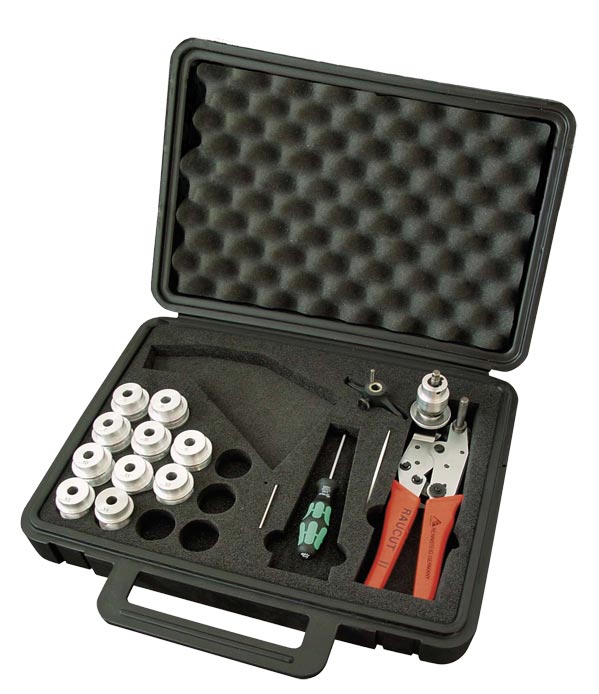

P/N 8007 3030 6

  • For opening continuous multi-fiber buffer tubes without cutting fibers
  • Avoiding unnecessary cutting of optical fibers to be branched
  • Remarkable cost savings
  • Shaving off a sheath section by parallel cutting method
  • Easily exchangeable guide rollers (ball catch mechanism) for tube range Ø 4.0 mm to Ø 14.0 mm

InfoRequest quote and/or buying option available.

P/N 8712 1000 61XL

  • Terminates / Finishes Simplex 2.30mm POF cable Strips the jacket of the POF cable.
  • 4 indent crimp tool put on the MOST ferrules Adjustable length Safe cutting system, Rough cut blade.
  • Comes in a handy plastic case with depth stop and 10X inspect. 50 meters of MOST Cable, 50 male 50 female MOST ferrules and an extra cutting head.

InfoRequest quote and/or buying option available.

P/N 618 004 3 1

  • It has a dual 2.60mm hex.
  • Comes with soft ergonomic grips for a lifetime of use.
  • Crimping tool for the LC connector ferrules
  • Locates the connector in the proper location before hex crimp.
  • Easy to use, ergonomic design

InfoRequest quote and/or buying option available.

P/N 690 107 3

  • Light-Seal® crimp/Swage Tool for the Field Installable Light-Seal® ST POF connector that work with standard POF jacket cable.This tool is designed to help with the ease of installation and maximum retention on the POF jacket.

InfoRequest quote and/or buying option available.

P/N 8000 0001 0 0

  • For terminating the fiber without polishing
  • The termination is done by clamping the POF cable into place
  • A very precise round razor blade can cut the cable with a scissor like action without damaging the fiber
  • This special blade is an "All in One" tool which is mounted on a thumb screw assembly that you can manual rotate this prevents a wear on the cutting blade

InfoRequest quote and/or buying option available.

P/N 8000 0005 0 0

  • For terminating the fiber without polishing
  • The termination is done by clamping the POF cable into place
  • A very precise round razor blade can cut the cable with a scissor like action without damaging the fiber
  • This special blade is an "All in One" tool which is mounted on a gear assembly that rotates the blade every time you cut a fiber so that you get even wear on the cutting blade and very constant fiber termination results
  • Former 8000 0004 0 0

InfoRequest quote and/or buying option available.

P/N 8001 0009 3

  • Specialized cutting mode for clean cut edges with no need for polishing
  • Optimal quality of data transfer
  • Diameter to be cut adjustable by adjusting eccentric
  • Optional cutting systems - replaceable after wear
    • P/N 8000 0005 0 0 - automatic blade advance and final stop (safety cutting system)
  • Material: special tool steel

InfoRequest quote and/or buying option available.
