Solar System Tool for crimping of Tyco Solarlok®PV4 (12/10 AWG) solar contacts

P/N 624 969 3 1 RT

This crimp tool is recommend for crimping of Tyco Solarlok®PV4 (12/10 AWG) contacts. The excellent handling, easy exchange of the crimping insert bits and the possibility of adding a positioning aid are facts in favour of these crimping pliers.

Request quote and/or buying option available.

P/N

624 969 3 1 RT

624 969 3 0 RT

624 969 0 01 RT

Finish

Crimp System Tool
(1x Tool Frame with 1x Crimping Die Set, 1x Locator)

Die Set only

(This item will fit as well in our Crimp System Tools)

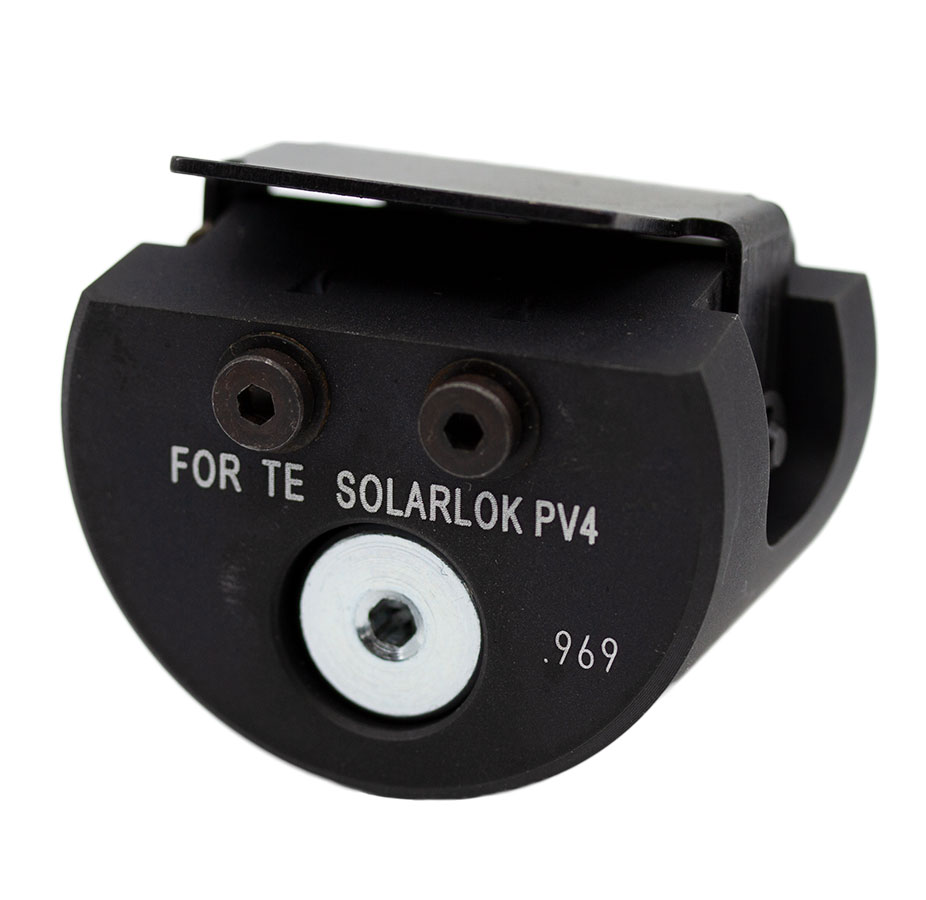

Locator only

(This item will fit as well in our Crimp System Tools)

Capacity

AWG 12/10 | 4 / 6 SQ-MM

Application

Tyco (Solarlok®PV4-H)

Tyco (Solarlok®PV4-H)

Pin Contact: 1971857-2 / 1971857-3 — (4/6 SQ-MM | 12/10 AWG)
Pin Kits: 1971861-1 / 2-1971861-1 | 1971861-2 / 2-1971861-2 — (4/6 SQ-MM | 12/10 AWG)

Socket Contact: 1971858-2 / 1971858-3 — (4/6 SQ-MM | 12/10 AWG)
Socket Kits: 1971862-1 / 2-1971862-1 | 1971862-2 / 2-1971862-2 — (4/6 SQ-MM | 12/10 AWG)

Tyco (Solarlok®PV4-S)

Pin Contact: 2270251 (2270251-2 / 2270251-3 / 2270251-4) — (4/6 SQ-MM | 12/10 AWG)
Socket Contact: 2270226 (2270226-2 / 2270226-3 / 2270226-4) — (4/6 SQ-MM | 12/10 AWG)

Request a Quote!

Buy from Distribution

Del City
Visit Site

Request a Quote!

Buy from Distribution

PV-Cables
Visit Site

Request a Quote!

Buy from Distribution

PV-Cables
Visit Site

General tool information

Handle Type	Two-component handles
Details	This Rennsteig crimp tool brings it all together: Parallel jaws for even crimps High-precision ratchet mechanism for complete crimps 1.2 metric tons pressure at crimping face, with minimal hand effort Interchangeable high-precision crimping die set Interchangeable locator for precision positioning of terminals Top German build quality throughout
Length	8"
Weight	1.52 lbs.
