MATE-N-LOK

CRIMP DIE SET for Universal MATE-N-LOK, Cable Range 0.2 - 2.0 SQ-MM

P/N 624 746 3 02 RT

Request quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male and Female Universal MATE-N-LOK Terminal, Cable Range 0.20 - 2.00 SQ-MM, Cable Insulation Range 1.00 - 3.30 mm. For Terminals 926895, 926896, 926897, 926893, 926894, 926898.

CRIMP DIE SET for Universal MATE-N-LOK, Cable Range 1.50 - 2.50 SQ-MM

P/N 624 747 3 02 RT

Request quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Female Universal MATE-N-LOK Terminal, Cable Range 1.50 - 2.50 SQ-MM, Cable Insulation Range 2.70 - 3.70 mm. For Terminals 926900, 926901.

CRIMP DIE SET for Universal MATE-N-LOK, Cable Range 0.2 - 0.8 SQ-MM

P/N 624 680 3 02 RT

Request quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male and Female Universal MATE-N-LOK Terminal, Cable Range 0.20 - 0.80 SQ-MM, Cable Insulation Range 1.00 - 2.50 mm. For Terminals 926895, 926896, 926897, 163557, 163558.

CRIMP DIE SET for MATE-N-LOK, Cable Range 0.50 - 2.00 SQ-MM

P/N 624 652 3 02 RT

Request quote available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male MATE-N-LOK Terminal, Cable Range 0.50 - 2.00 SQ-MM, Cable Insulation Range 1.52 – 3.3 mm [ .06 – .13 in ]. For Terminals 350547-1, 350550-1, AMP 770007-1, 770008-3.

CRIMP DIE SET for Mini-Universal MATE-N-LOK, Cable Range 0.35 - 1.00 SQ-MM

P/N 624 753 3 01 RT

Request quote and/or buying option available.

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Male and Female MINI UNIVERSAL MATE-N-LOK Terminal, Cable Range 0.35 - 1.00 SQ-MM, Cable Insulation Range 1.40 - 2.10 mm. For Terminals 170364, 170366, 171638, 171639.

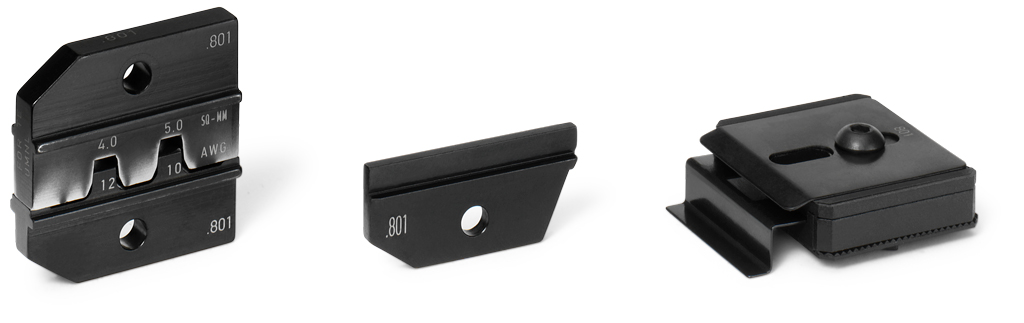

CRIMP DIE SET for Universal MATE-N-LOK , Cable Range 4.0 - 5.0 SQ-MM

P/N 624 801 3 023 RT

Request quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male and Female MATE-N-LOK Terminal, Cable Range 4.0 - 5.00 SQ-MM, Cable Insulation Range max. 5.1 mm. For Terminals 640309, 640310, 770234, 770246, 770247.

CRIMP DIE SET for MATE-N-LOK, Cable Range 0.50 - 1.50 SQ-MM

P/N 624 669 3 02 RT

Request quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male MATE-N-LOK Terminal, Cable Range 0.50 - 1.50 SQ-MM, Cable Insulation Range 1.40 - 2.30 mm. For Terminals 927842, 827844.

CRIMP DIE SET for Universal MATE-N-LOK , Cable Range 22-18

P/N 624 819 3 01 RT

Request quote option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Male and Female MATE-N-LOK Terminal, Cable Range22-18, Cable Insulation Range 1.5 - 3.2 mm. For Terminals 794228, 794229, 794230, 794231.

MATE-N-LOK

P/N 624 746 3 02 RT

P/N 624 747 3 02 RT

P/N 624 680 3 02 RT

P/N 624 652 3 02 RT

P/N 624 753 3 01 RT

P/N 624 801 3 023 RT

P/N 624 669 3 02 RT

P/N 624 819 3 01 RT
