RENNSTEIG System Tools

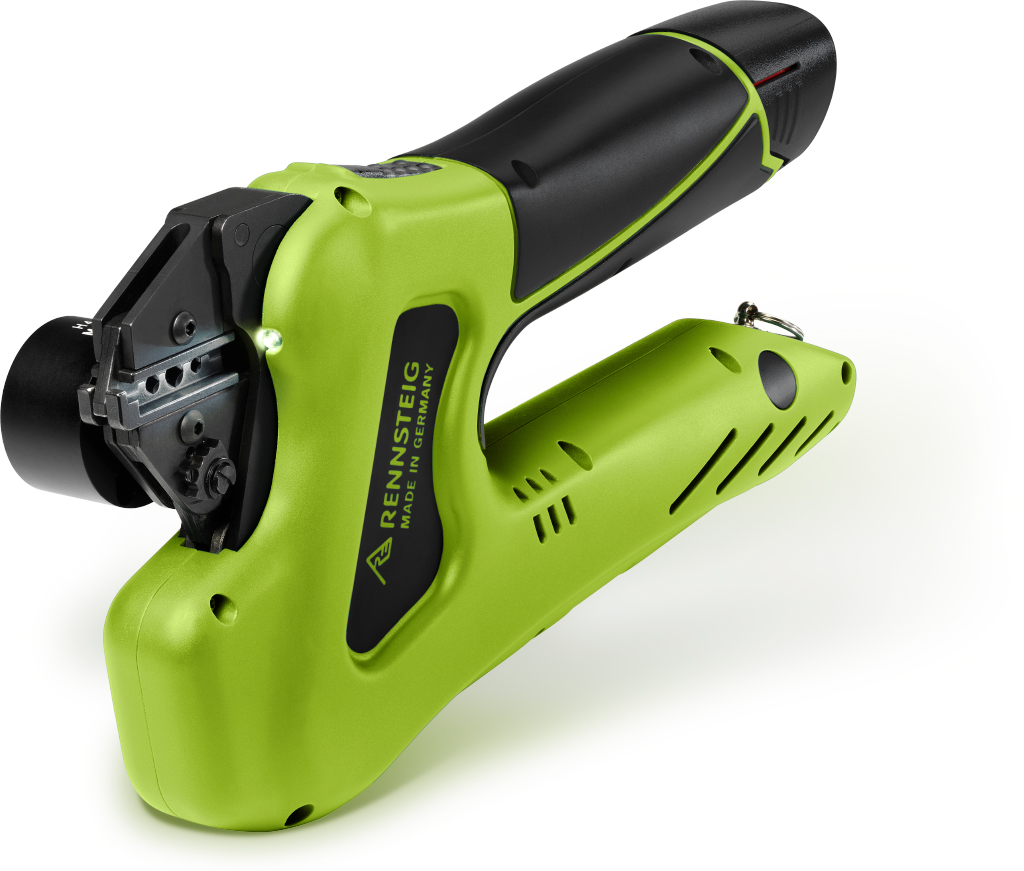

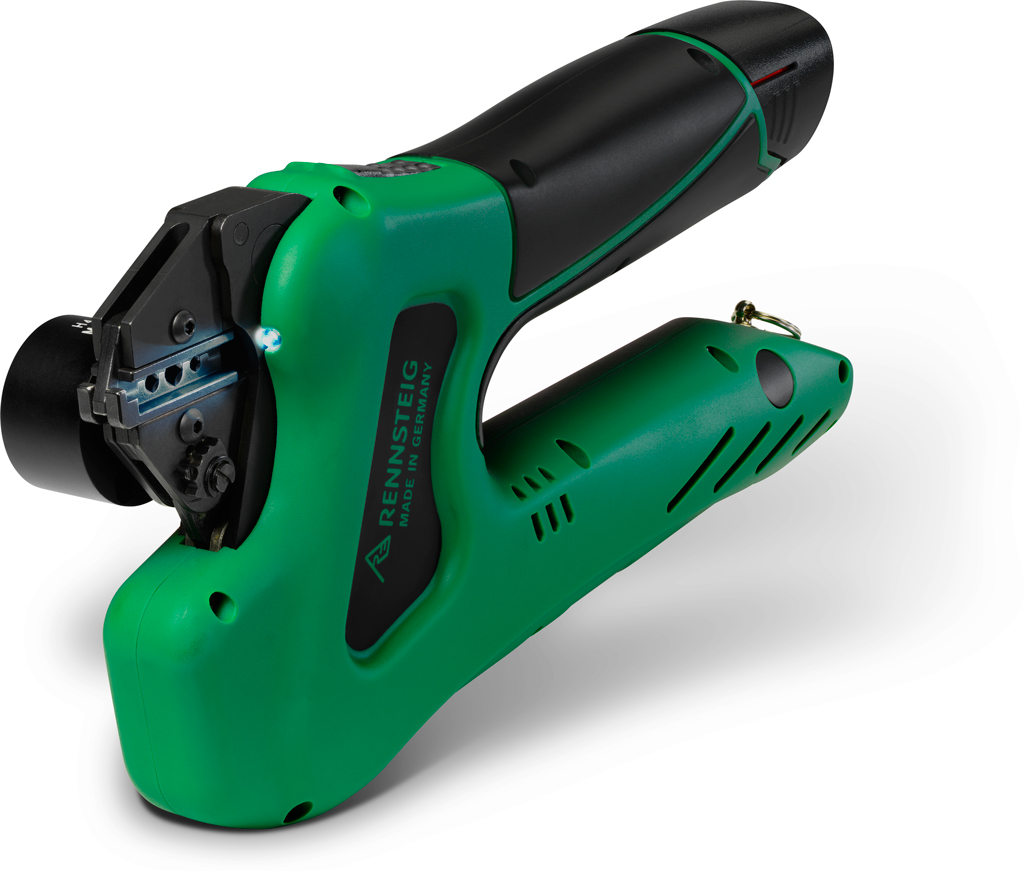

Battery Powered Crimping Tool

P/N 6370 0300 1 RT

InfoRequest quote and/or buying option available.

  • World‘s first electromechanical driven tool
  • Speeds up the crimping process
  • More than 1000 different interchangeable die sets available
  • Intelligent crimping, process monitoring through LED-Display
  • Low maintenance, due to the electromechanical drive mechanism
  • LED illuminated work area
  • Low noise, compared to hydraulic-driven
    tools
  • Quick-stop function, increase safety and
    prevents over-crimping
  • Eliminates hand fatigue due to less hand force
  • Energy-saving function
  • Combines fast and ergonomic crimping in one tool

P/N 636 025-1 RT

InfoRequest quote and/or buying option available.

  • Counter
  • Stroke from 6 to 14 mm (similar to 0.24 - 0.55 inch)
  • Hand or footswitch
  • Automatic safety closure - needed only for 14 mm stroke (similar to 0.55 inch)
  • Adjustable leg height
  • Userfriendly rotatability of 360°

P/N 636 084 3 RT

InfoRequest quote and/or buying option available.

  • Crimp unit for insulated and uninsulated ferrules
  • Square crimp shape with 4 profiled jaws
  • Self-Adjusting to the required ferrule size
  • Rotatable insertion aid for insulated and uninsulated ferrules
  • With length stop for insulated ferrules
  • Operation counter with reset button
  • Easy retrofit for turned contact crimping
  • For 26 - 8 AWG (similar to 0.08 SQ-MM - 10 SQ-MM)

P/N 636 025-5 RT

InfoRequest quote and/or buying option available.

  • Crimping machine with sliding tray for most of the crimp dies and locators of the Rennsteig Crimp System Tool
  • Connector and cable are held in the open bottom section
  • Wire clamps in for safe working
  • Automatic release following insertion

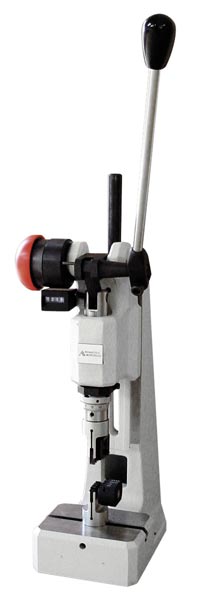

P/N 636 000 1

InfoRequest quote option available.

  • For small-lot production
  • Parallel crimping
  • Designed to match all PEW12 series crimping dies, locators and wire stops
  • Operating height and working stroke same as with PEW12 crimping tool
  • Fine adjustment of crimping height by 0.01 mm with adjusting nut at the press ram
  • Forced locking system for reliable crimping (emergency release provided)
  • Crimping dies and accessories easily interchangeable
  • Convenient handling as no safety attachment in the way

Request a Quote!

P/N 636 0753 3 1 RT

InfoRequest quote and/or buying option available.

  • For crimping turned male and female contacts
  • Interchangeable 4-indent units, also available for MIL
  • Indent settings in 0.01 mm increments, with digital setting and readout
  • Go - no-go gauge for checking the basic calibration
  • Electronic wear monitoring with warning function
  • Setting functions in mm, inch or MIL
  • Compatible with numerous locators
