Indent Crimp Tools/Machined Contacts

P/N Please click here.

  • Electro-hydraulic Li-Ion battery-powered tool for crimping turned male and female contacts
  • 20kN pressure
  • 2.8 second crimp cycle
  • One battery charge lasts for about 300 with average load
  • Recharge in under 30 minutes
  • Multifunctional digital display, with settings shown in mm, inches or MIL selector settings according to M22520/1-01
  • Takes 4/8 indent heads from Rennsteig
    • 360° swivel head
    • Indent positioning precision to 1/100 mm
    • Wear monitoring
    • Recalibration function

InfoRequest quote and/or buying option available.

P/N Please click here.

  • Digital crimp tool
  • A tool family that covers a wide cable range
  • Crimping of turned male and female contacts for wire sizes 0.03 to 10.0 SQ-MM
  • Micro setting of indenters and display up to 0.01 mm tolerance
  • Digital readout to avoid setting errors
  • Best of all worlds - multifunctional digital display, with settings shown in mm, inches or MIL selector positions
  • Locator offers positions for 12 different contacts
  • Calibration/reset with included go - no go gauge
  • Forced locking system and synchronous drive of indenters for highly reliable crimp connections
  • Stored in a handy plastic case

InfoRequest quote and/or buying option available.

P/N 8753 0416 61 RT1

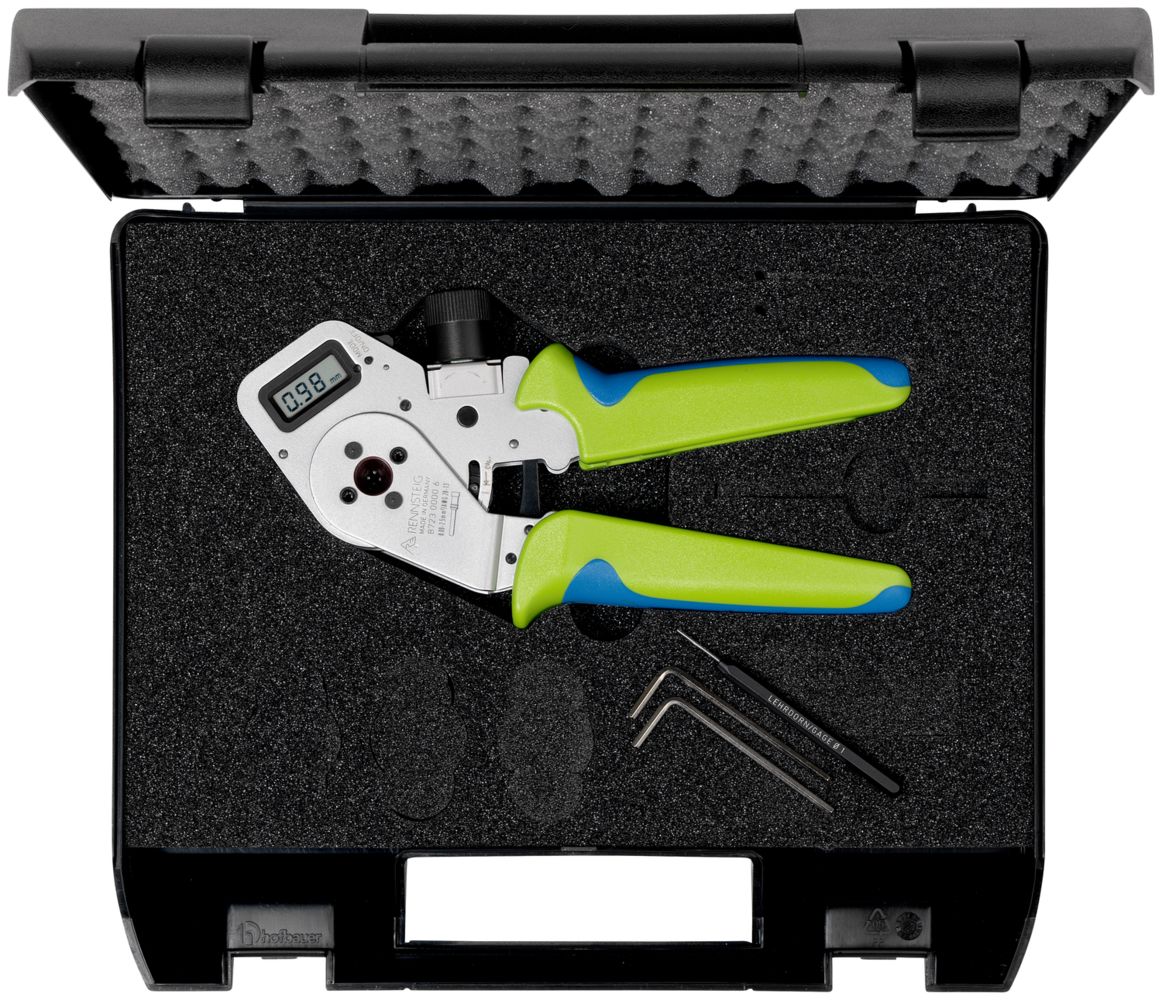

  • Digital crimp tool
  • A tool family that covers a wide cable range
  • Crimping of turned male and female contacts for wire sizes 0.03 to 10.0 SQ-MM
  • Micro setting of indenters and display up to 0.01 mm tolerance
  • Digital readout to avoid setting errors
  • Best of all worlds - multifunctional digital display, with settings shown in mm, inches or MIL selector positions
  • Locator offers positions for 12 different contacts
  • Calibration/reset with included go - no go gauge
  • Electronic wear monitoring with warning function
  • Forced locking system and synchronous drive of indenters for highly reliable crimp connections
  • Stored in a handy plastic case

Request a Quote!

P/N Please click here.

  • Digital crimp tool
  • A tool family that covers a wide cable range
  • Crimping of turned male and female contacts for wire sizes 0.03 to 10.0 SQ-MM
  • Micro setting of indenters and display up to 0.01 mm tolerance
  • Digital readout to avoid setting errors
  • Best of all worlds - multifunctional digital display, with settings shown in mm, inches or MIL selector positions
  • Locator offers positions for 12 different contacts
  • Calibration/reset with included go - no go gauge
  • Electronic wear monitoring with warning function
  • Forced locking system and synchronous drive of indenters for highly reliable crimp connections
  • Stored in a handy plastic case

InfoRequest quote and/or buying option available.

P/N Please click here.

InfoRequest quote and/or buying option available.

  • Digital crimping tool for crimping turned male and female contacts with an indenter geometry according to MIL 22520/7-01, MIL 22520/2-01 and MIL 22520/1-01
  • Indents adjustable in 0.01 mm increments, with digital reading
  • Multifunctional digital display, with settings shown in mm, inches or MIL selector settings according to MIL 22520/7-01, MIL 22520/2-01 and MIL 22520/1-01
  • Calibration and wear monitoring by means of enclosed gauge
  • RESET function for recalibration
  • Electronic wear monitoring with warning function
  • Reliable crimping with force lock and synchronous crimp indenters movement
  • Multiple information functions (remaining lifetime, number of calibrations, serial number)
  • Rennsteig turrets and MIL turrets likewise usable



P/N Please click here.

InfoRequest quote and/or buying option available.

  • Special hand tool for crimping turned male and female contacts
  • Indenter geometry according to AS/MIL 22520/7-01, AS/MIL 22520/2-01 and AS/MIL 22520/1-01
  • Relevant crimp depth set by an 8-position selector
  • Selector setting according to MIL

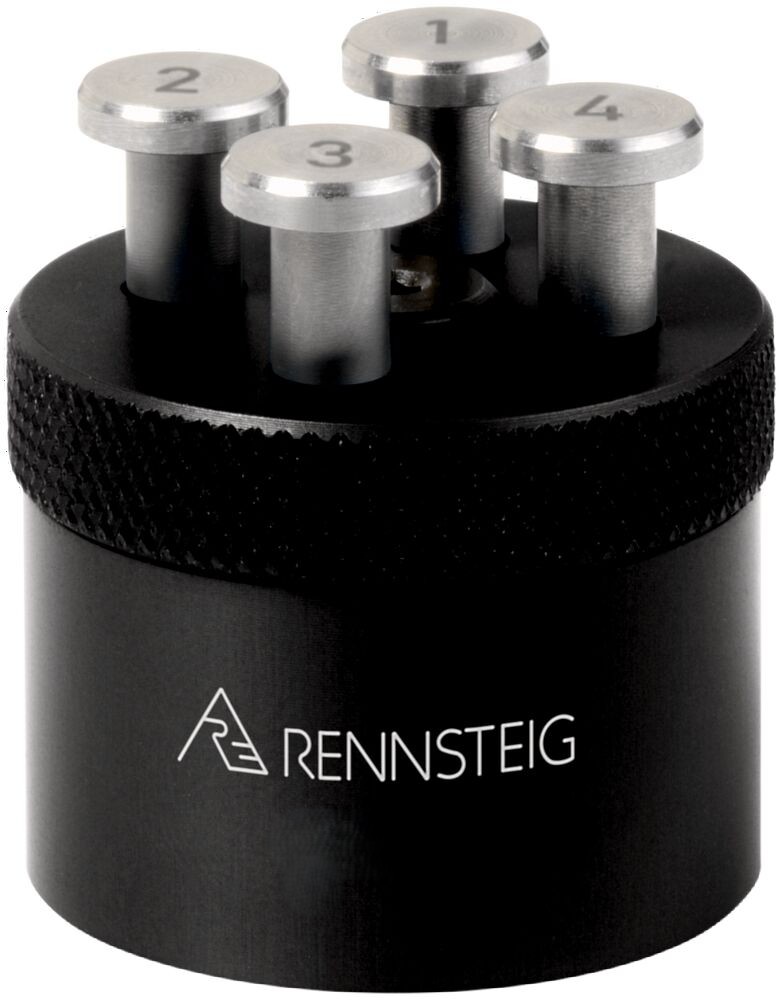

  • Single locators and multi-pin locators are available
  • Existing turrets fit the tool
  • Go- Nogo gauge for accurate calibration according to AS/MIL 22520/3-03 and AS/MIL 22520/3-01 standard available
  • Forced locking system and synchronous drive of indenters for highly reliable crimp connections
  • Optimized opening width, ergonomic design, and reduced hand force
  • Approval for aviation after successful qualification through Airbus SAS

InfoRequest quote and/or buying option available.

For detailed information click here.

InfoRequest quote and/or buying option available.

  • Special Hand Tools for crimping turned pin or socket contacts with flexible Aluminium Cables
  • It is possible for this Kind of Tooling to complete a Conductor and Insulation Crimp in one single step with the Greatest Possible Precision

P/N 8750 0404 61 RT

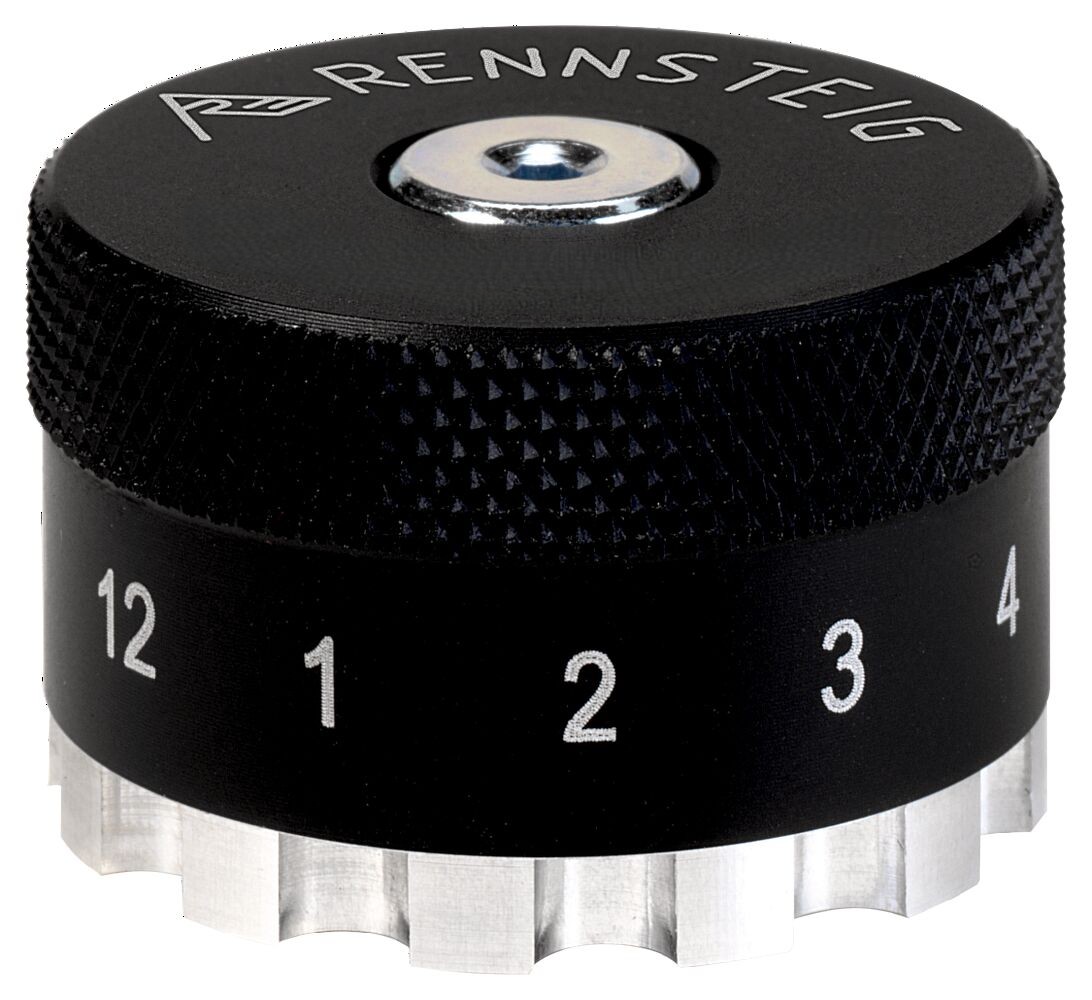

The four indent crimp tool R8750 0404 61 RT has been developed for optimal crimping of machined diameters from 0.14 to 6.0 SQ-MM (26 through 10 AWG). The tool consists of a first movable handle, a second fixed handle, a precision ratchet mechanism, a metric scale, an adjustment system with micro setting of 0.01 mm tolerance, four indenters and a 12 position locator, fully rotable, for accurate positioning of contacts. Besides, the tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.

Request a Quote!

P/N 8753 0404 61

The four indent crimp tool R8753 0404 61 has been developed for optimal crimping of machined diameters from 0.14 to 6.0 SQ-MM (26 through 10 AWG). This four indent crimpt tool with digital display is designed for manual crimping. It is manufactured to the latest technical state of the art and meets recognized safety standards. It is intended for crimping turned pin and socket contacts having 0.14 - 6.0 SQ-MM conductor cross-sections. Besides, the tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.

Request a Quote!

P/N 8753 0000 61

The four indent crimp tool R8753 0000 61 has been developed for optimal crimping of machined diameters from 0.14 to 6.0 SQ-MM (26 through 10 AWG). This four indent crimp tool with digital display is designed for manual crimping. It is manufactured to the latest technical state of the art and meets recognized safety standards. It is intended for crimping turned pin and socket contacts having 0.14 - 6.0 SQ-MM conductor cross-sections. Besides, the tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.

P/N Please click here.

  • Special hand tools for crimping turned male and female contacts for wire sizes 0.03 to 10.0 SQ-MM
  • Makes consistently concentric crimps by synchronously driven jaws
  • Micro setting down to 0.01 mm tolerance
  • Enclosed gauge ensures accurate calibration

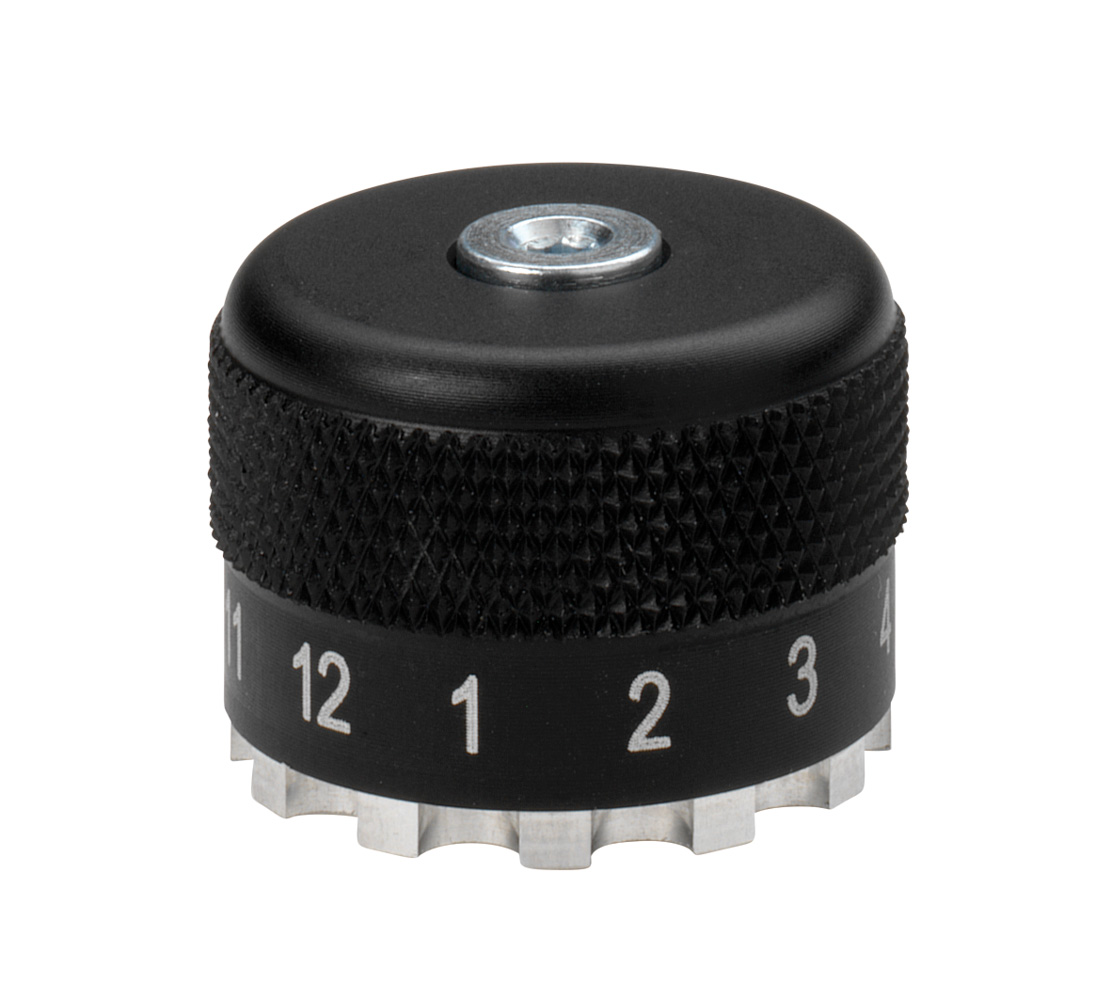

  • Locator for exact positioning of 12 different contact types
  • Locator interchangeable and adaptable to appropriate contact type
  • Locator position can be selected on the attached reference sheet
  • Optimal leverage
  • Ergonomically designed two-components handles

InfoRequest quote and/or buying option available.

MicroCrimp

  • Special hand tools for crimping turned male and female contacts for wire sizes 0.03 to 10.0 SQ-MM
  • Makes consistently concentric crimps by synchronously driven jaws
  • Micro setting down to 0.01 mm tolerance
  • Enclosed gauge ensures accurate calibration
  • Locator for exact positioning of 12 different contact types
  • Locator interchangeable and adaptable to appropriate contact type
  • Locator position can be selected on the attached reference sheet
  • Optimal leverage
  • Chrome plated body, red plastic handles

SelectorCrimp HDT-48

P/N 8782 0009 6 RT

InfoRequest quote available.

  • Special crimp tool for crimping of machined/turned contacts
  • Applicable for DT-Series terminals from TE/Deutsch and MIL-DTL-26482 Series II, -83723 Series III, -83733, and AS81703 connector terminals
  • Ergonomic design
  • Capacity: AWG 22-12 (similar to 0.35 - 3.0 SQ-MM)
