Ferrules (End Sleeves)

P/N 624 090 3 | P/N 624 090-3 3
P/N 624 090-4 3 | P/N 624 090-5 3
P/N 624 091 3 | P/N 624 092 3
P/N 625 00093 3 | 625 00094 3

InfoRequest quote and/or buying option available.

    • Crimp System Tool for crimping insulated and non-insulated wire ferrules (end sleeves)
    • High-precision ratchet mechanism for complete crimps
    • Parallel crimping performance for even crimps
    • Capacity: 3/0 - 24 AWG (similar to 0.25 - 95 SQ-MM) (depends on version)

P/N 610 902

InfoRequest quote and/or buying option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 10" (P/N 707 020) and Ferrule Crimping Tool PEW 8.186 (P/N 610 186 3).

Discontinued item. It is being replaced by a new and improved ergonomic design PN 610 184 3. P/N 610 901

InfoRequest quote and/or buying option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 10" (P/N 707 020) and Ferrule Crimping Tool PEW 8.185 (P/N 610 185 3).
  • Crimp Capacity: 28 - 6 AWG (similar to 0.08 - 16 SQ-MM)
  • Stripping Capacity: 32 - 8 AWG | 0.03 - 10 SQ-MM

Discontinued item. It is being replaced by a new and improved ergonomic design PN 610 922.P/N 610 903

InfoRequest quote option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 10" (P/N 707 020) and Ferrule Crimping Tool PEW 8.88 (P/N 610 088 3).
  • Crimping Capacity: 28 - 6 AWG (similar to 0.08 - 16 SQ-MM)
  • Stripping Capacity: 32 - 8 AWG | 0.03 - 10 SQ-MM

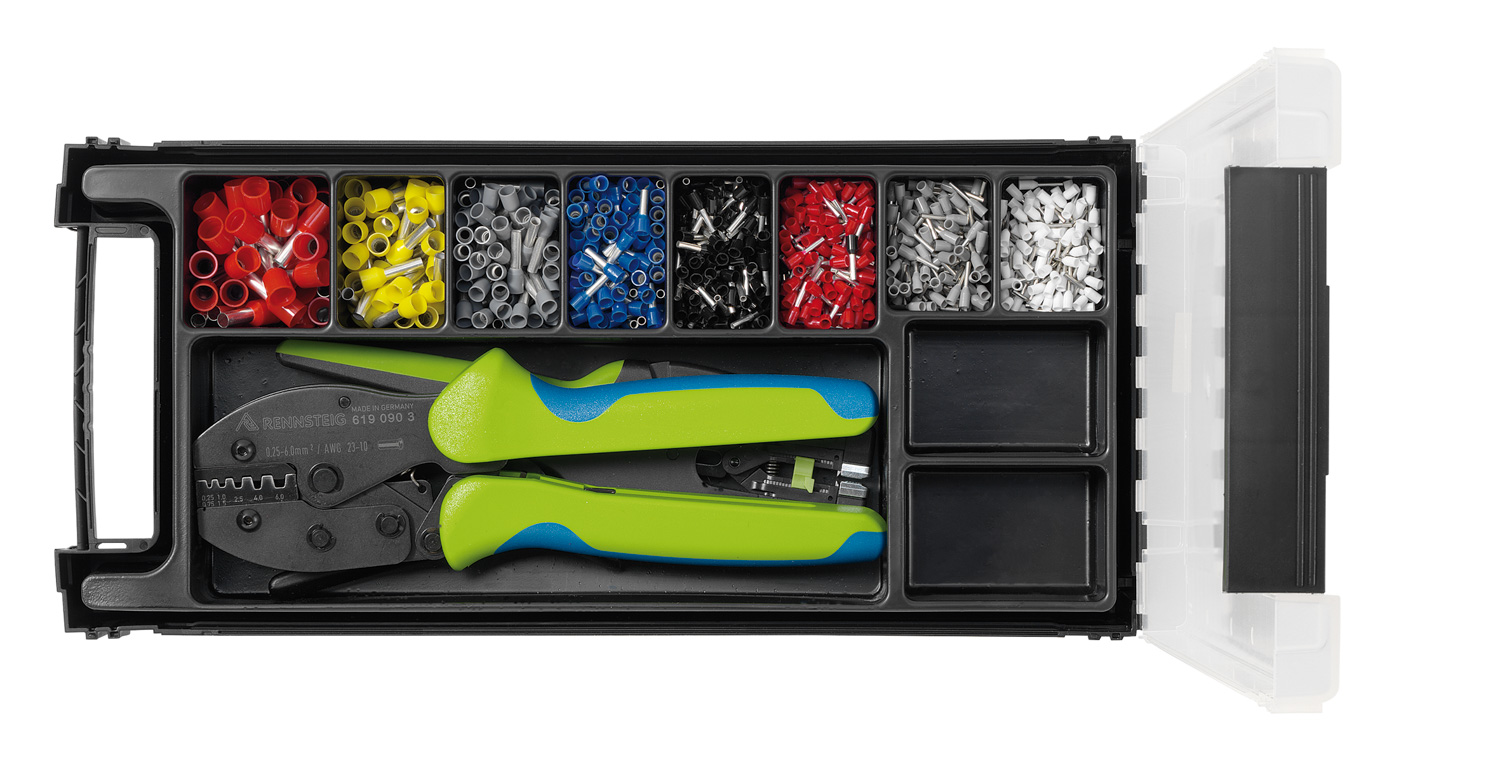

P/N 610 904

InfoRequest quote option available.

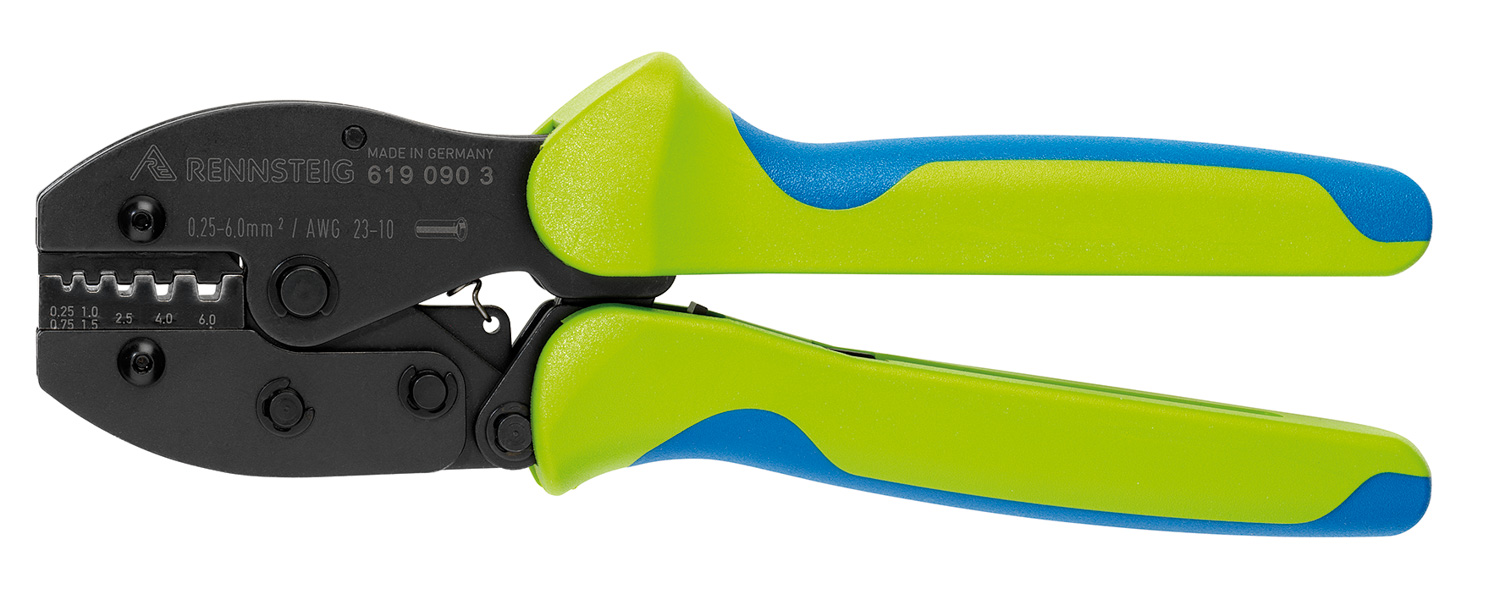

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 10" (P/N 707 020) and Ferrule Crimping Tool PEW 9 (P/N 619 090 3).

P/N 610 190 6

InfoRequest quote option available.

  • Combines the features of crimping pliers with front and side feed in one universal tool
  • Crimp head can be freely rotated 360°, with 8 locking positions
  • Square crimp profile
  • Automatic square crimping of insulated and uninsulated ferrules
  • Possibility of crimping extra long ferrules up to 16 mm in one operation
  • Hand force optimized design of the mechanical structure and improved ergonomics for fatigue-free operation
  • Capacity: 26 - 6 AWG (similar to 0.14 - 16 SQ-MM)
  • Product video

P/N 610 921

InfoRequest quote option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip® 16" (P/N 707 040) and Ferrule Crimping Tool PEW 8.185 (P/N 610 185 3).
  • Crimp Capacity: 28 - 6 AWG (similar to 0.08 - 16 SQ-MM)
  • Stripping Capacity: 28 - 6 AWG | 0.08 - 16 SQ-MM

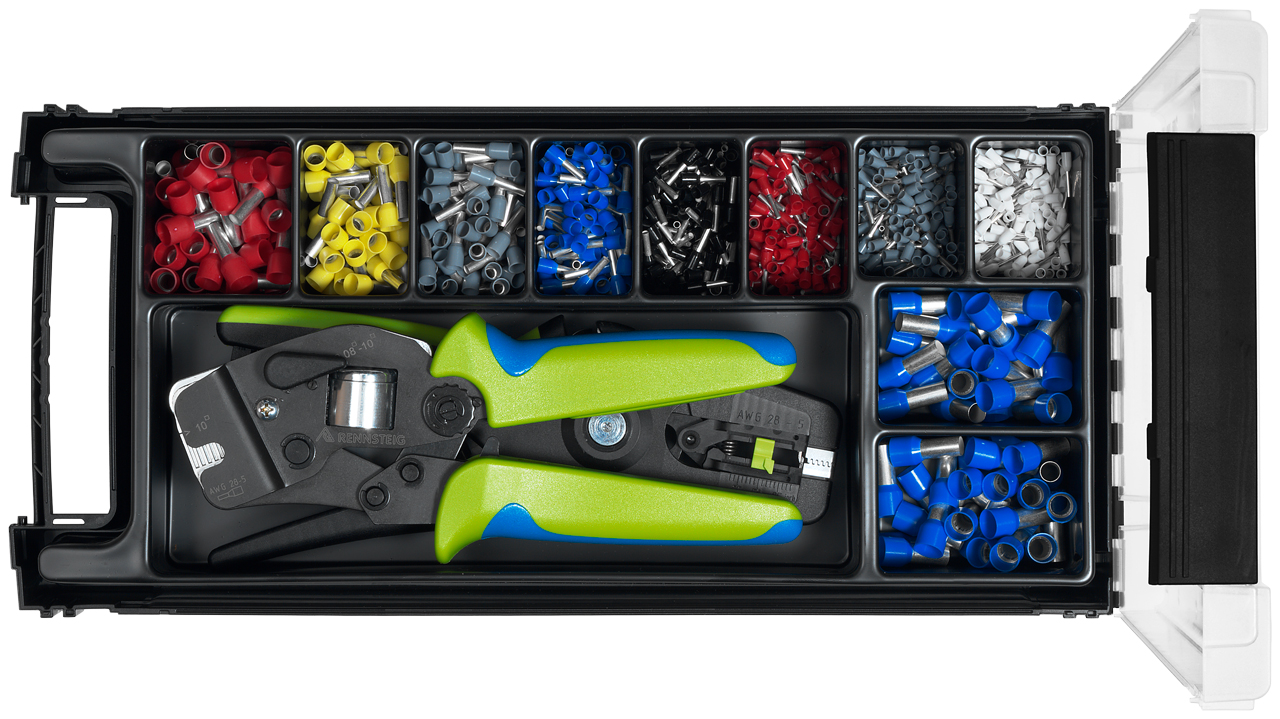

P/N 610 922

InfoRequest quote option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 16" (P/N 707 040) and Ferrule Crimping Tool PEW 8.88 (P/N 610 088 3).
  • Crimping Capacity: 28 - 6 AWG (similar to 0.08 - 16 SQ-MM)
  • Stripping Capacity: 32 - 8 AWG | 0.03 - 10 SQ-MM

P/N 610 923

InfoRequest quote option available.

  • Ferrule processing Set with a large assortment (800 pcs) of end-sleeves (20-6 AWG) with Rennsteig automatic self-adjusting Stripping Tool "MultiStrip 16" (P/N 707 040) and Ferrule Crimping Tool Twistor®16 (P/N 610 190 6).
  • Crimp Capacity: 26 - 6 AWG (similar to 0.14 - 16 SQ-MM)
  • Stripping Capacity: 28 - 6 AWG | 0.08 - 16 SQ-MM
  • Product video
