FASTIN-FASTON

P/N 624 673 3 012 RT

InfoRequest quote and/or buying option available.

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Female Faston 6.3 mm Terminal, Cable Range 0.35 - 2.50 SQ-MM, Cable Insulation Range 1.20 - 3.00 mm. For Terminals 41968, 41969, 140794, 160421, 181902, 160506 and more...

CRIMP DIE SET for MCP and Sensor-Flattype Rec. 2.8 mm

P/N 624 722 3 023 RT

InfoRequest quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Female MCP and Sensor-Flattype Rec. 2.8 mm Terminal, Cable Range 0.50 - 1.00 SQ-MM, Cable Insulation Range 1.40 - 2.10 mm. For Terminals 967702/967713, 967705/967719, 968849/968872, 66101.

CRIMP DIE SET for FASTIN-FASTON 9.5

P/N 624 807 3 012 RT

InfoRequest quote and/or buying option available.

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of FASTIN-FASTON 9.5 Terminal, Cable Range 1.50 - 2.50 SQ-MM, Cable Insulation Range 2.20 - 3.00 mm. For Terminal 963827.

CRIMP DIE SET for FASTIN-FASTON and Positive Lock 6.3 mm

P/N 624 745 3 0 RT

InfoRequest quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Tab and Female FASTIN-FASTON and Positive Lock 6.3 mm Terminal, Cable Range 1.25 - 6.00 SQ-MM, Cable Insulation Range 2.10 - 5.30 mm. For Terminals 100883, 100884, 160892, 928950, 928951, 928952, 928959, 928961.

P/N 624 744 3 0 RT

InfoRequest quote and/or buying option available.

Complete box with 1 die set, spare parts and reference data sheet for crimping of Female FASTIN-FASTON 2.8, Standard Timer, Standard Power Timer, Junior Power Timer 2.8,  Junior Timer 2.8, Positive Lock 6.3, Multimate Type III Terminal, Cable Range 0.20 - 0.50 SQ-MM, Cable Insulation Range 1.00 - 2.30 mm. For Terminals 160922, 160923, 926985, 927776, 927872, 928907, 927780, 967260, 928989, 929951, 964140.

CRIMP DIE SET for FASTIN-FASTON 4.8 mm

P/N 624 832 3 012

InfoRequest quote and/or buying option available.

Complete box with 1 die set,1 locator, spare parts and reference data sheet for crimping of Female FASTIN-FASTON 4.8 mm Terminal , Cable Range 1.00 - 2.50 SQ-MM, Cable Insulation Range 1.90 - 3.00 mm. For Terminal 182524.

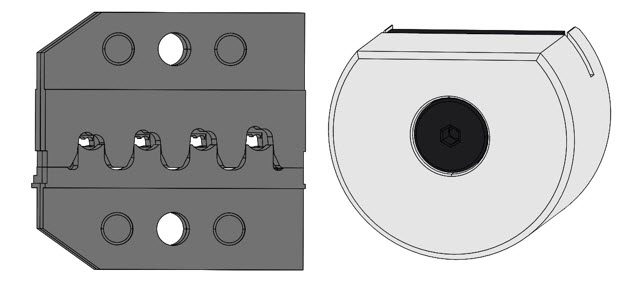

CRIMP DIE SET for Faston .187

P/N 624 833 3 012 RT

InfoRequest quote available.

Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Female Faston .187 Terminal, Cable Range 0.5 - 1.5 SQ-MM (similar to 20 - 15 AWG), Cable Insulation Range 2.3 - 3.3 mm. For Terminal 280919-4.
