Solar System Tool for crimping of TongLing TL4 (12/10 AWG) solar contacts

P/N 624 1186 3 1 RT

This crimp tool is recommend for crimping of TongLing TL4 (12/10 AWG) contacts. The excellent handling, easy exchange of the crimping insert bits and the possibility of adding a positioning aid are facts in favor of these crimping pliers.






P/N 624 1186 3 1 RT 624 1186 3 0 RT 624 1186 0 01 RT
Finish Crimp System Tool
(1x Tool Frame with 1x Crimping Die Set, 1x Locator)

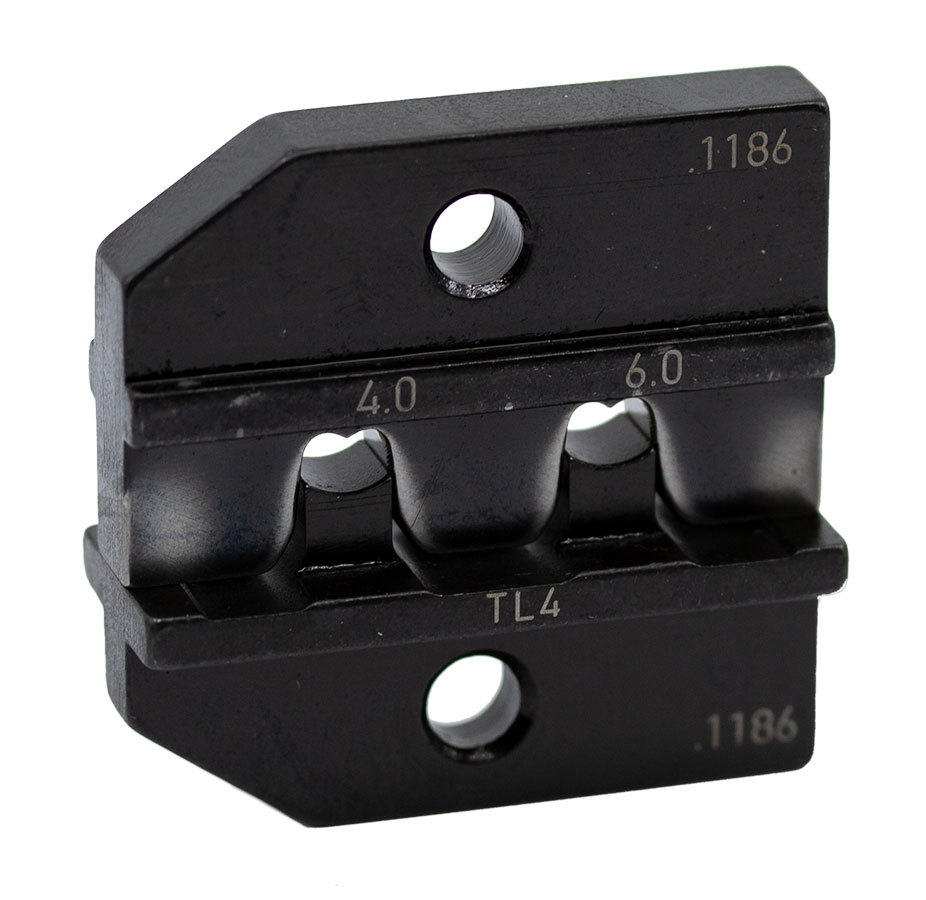

Die Set only

(This item will fit as well in our Crimp System Tools)

Locator only

(This item will fit as well in our Crimp System Tools)

Capacity AWG 12/10 | 4 / 6 SQ-MM
Application

TL-Cable01 Series connectors

TongLing TL4

Used in TL-Cable01 Series connectors

   Request a Quote! Request a Quote! Request a Quote!



General tool information

Handle Type Two-component handles
Details

This Rennsteig crimp tool brings it all together:

  • Parallel jaws for even crimps
  • High-precision ratchet mechanism for complete crimps
  • 1.2 metric tons pressure at crimping face, with minimal hand effort
  • Interchangeable high-precision crimping die set
  • Interchangeable locator for precision positioning of terminals
  • Top German build quality throughout
Length

8"

Weight 1.52 lbs.
