Crimp System Tool for Crimping Insulated and Non-Insulated Wire Ferrules (End Sleeves)

P/N 624 090 3 | P/N 624 090-3 3
P/N 624 090-4 3 | P/N 624 090-5 3
P/N 624 091 3 | P/N 624 092 3
P/N 625 00093 3 | 625 00094 3
  • Crimp System Tool for crimping insulated and non-insulated wire ferrules (end sleeves)
  • High-precision ratchet mechanism for complete crimps
  • Parallel crimping performance for even crimps
  • Capacity: 3/0 - 24 AWG (similar to 0.25 - 95 SQ-MM) (depends on version)
  • 1.2 metric tons pressure at crimping face, with minimal hand effort

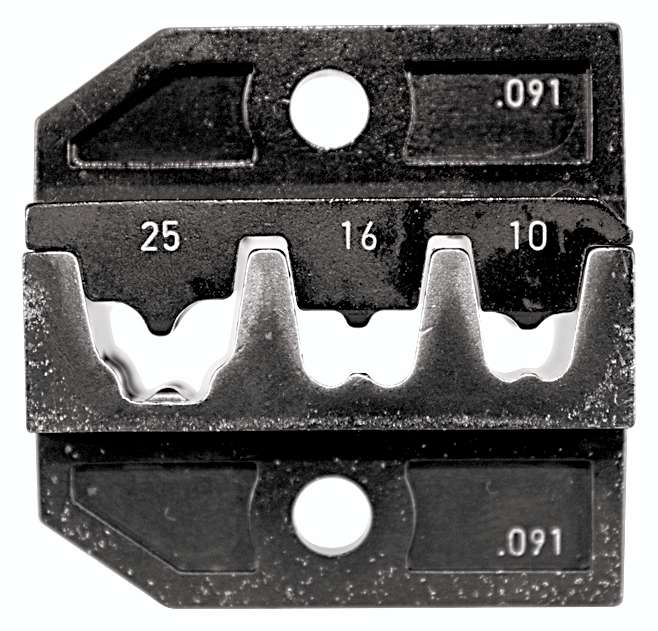

  • Interchangeable high-precision crimping die set
  • Interchangeable locator for precision positioning of terminals
  • Ensures accurate, solderless, electrical connections
  • Customized die sets on request

P/N 624 090 3 624 090-3 3 624 090-4 3
Description Crimp System Tool with Dies for Ferrules (End Sleeves)

Crimp System Tool with Dies for Ferrules (End Sleeves)

  • Max. ferrule length: 14 mm (similar to 9/16 inches)

Crimp System Tool with Dies for Ferrules (End Sleeves)

  • Max. ferrule length: 12 mm (similar to 8/16 inches)
Handle Type Two-component Handle
Capacity 24-18/18-16/14/12/10 AWG
(similar to 0.25 - 0.75 / 1.0 - 1.5 / 2.5 / 4.0 / 6.0 SQ-MM)
Application
Finish Black-Oxide
Length 9 7/8"
Weight 1.2 lbs
  Request a Quote! Request a Quote! Request a Quote!


P/N 624 090-5 3 624 091 3 624 092 3
Description

Crimp System Tool with Dies for Ferrules (End Sleeves)

  • Max. ferrule length: 20 mm (similar to 13/16 inches)

Crimp System Tool with Dies for Ferrules (End Sleeves)

Crimp System Tool with Dies for Ferrules (End Sleeves)

  • Max. ferrule length: 12 mm (similar to 8/16 inches)
Handle Type Two-component Handle
Capacity 24-18/18-16/14/12/10 AWG
(similar to 0.25 - 0.75 / 1.0 - 1.5 / 2.5 / 4.0 / 6.0 SQ-MM)

8 / 6 / 4 AWG
(similar to 10 / 16 / 25 SQ-MM)

2 & 1/0 AWG

(similar to 35 & 50 SQ-MM)

Application
Finish Black-Oxide
Length 9 7/8"

Weight 1.2 lbs
  Request a Quote! Request a Quote! Request a Quote!


P/N 625 00093 3 625 00094 3
Description Crimp System Tool Special Tool Frame version with for larger terminals/wire sizes with Dies for Ferrules (End Sleeves)
Handle Type Two-component Handle
Capacity 2/0 AWG (similar to 70 SQ-MM) 3/0 AWG (similar to 95 SQ-MM)
Application
Finish Black-Oxide
Length 9 7/8"

Weight 1.2 lbs
  Request a Quote! Request a Quote!

Square CrimpSquare Crimp
