Crimping machines CM 25-3 4/8-indent

P/N 636 0753 3 1 RT

InfoRequest quote and/or buying option available.

  • For crimping turned male and female contacts
  • Interchangeable 4-indent units, also available for MIL
  • Indent settings in 0.01 mm increments, with digital setting and readout
  • Go - no-go gauge for checking the basic calibration
  • Electronic wear monitoring with warning function
  • Setting functions in mm, inch or MIL
  • Compatible with numerous locators

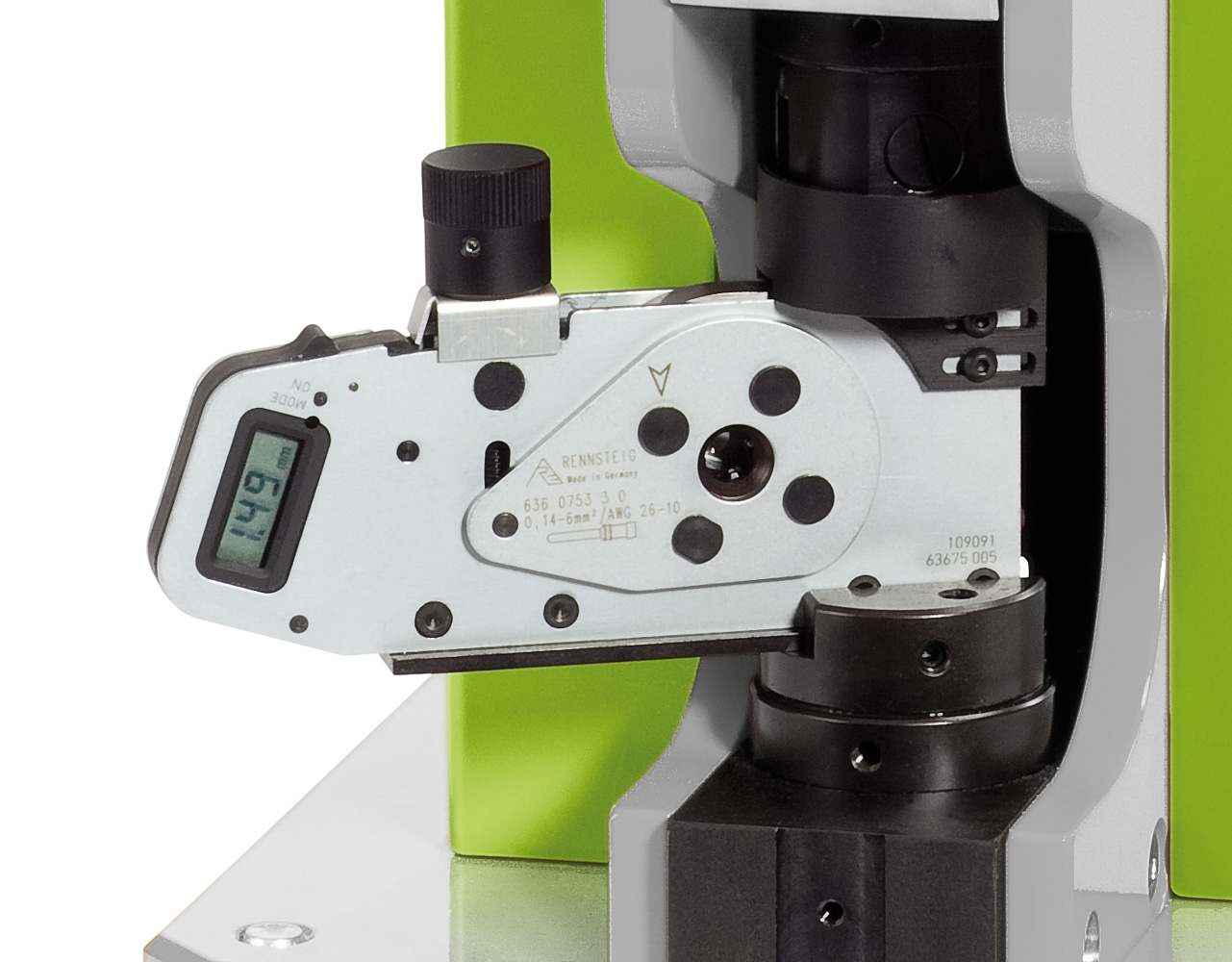

Crimping Machine CM25-3 with assembled crimping unit


P/N 636 0723 3 1 RT 636 0733 3 1 RT 636 0753 3 1 RT 636 0763 3 1 RT
Description CM 25-3 with 4/8 indent crimping unit 8.72, standard locator and digital readout CM 25-3 with 4/8 indent crimping unit 8.73, standard locator and digital readout CM 25-3 with 4/8 indent crimping unit 8.75, standard locator and digital readout CM 25-3 with 4/8 indent crimping unit 8.76, standard locator and digital readout
Capacity 0.08 – 2.5 SQ-MM 0.03 - 0.5 SQ-MM 0.14 – 6.0 SQ-MM 1.5 – 10.0 SQ-MM
Machine Dimensions 13" x  20" x 11"
CM 25-3 4/8-indent
Weight 74 lbs.
  Request a Quote! Request a Quote! Request a Quote! Request a Quote!



Single Crimping Units

  636 0723 3 01 RT 636 0733 3 01 RT 636 0753 3 01 RT 636 0763 3 01 RT
P/N 636 0723 3 01 RT 636 0733 3 01 RT 636 0753 3 01 RT 636 0763 3 01 RT
Description Crimping unit 8.72 with a standard locator and digital readout Crimping unit 8.73 with a standard locator and digital readout Crimping unit 8.75 with a standard locator and digital readout Crimping unit 8.76 with a standard locator and digital readout
Capacity 0.08 – 2.5 SQ-MM 0.03 - 0.5 SQ-MM 0.14 – 6.0 SQ-MM 1.5 – 10.0 SQ-MM
Weight 1.4 lbs.
  Request a Quote! Request a Quote! Request a Quote! Request a Quote!



warningWarning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Technical changes and errors are reserved.
