Pelican Cutter / Wiring Duct Cutter

InfoRequest quote and/or buying option available.

Hand held wire duct cutter. Will cut width up to 2 1/4 inches. This high quality hand held cutter will produce burr free cuts. The user will experience an evenly cut over the entire blade length. This precise wire duct cutter has ergonomic handles producing less fatigue to the user. The hardened blades are exchangeable.

  • Burr-free cutting of plastic plates, plastic-tubes, cable trunks and skirtings
  • 2 versions with cutting lengthes 60 mm and 110 mm available
  • 110 mm model available with support to cut plastic plates or trunks
  • Cable-ducts up to 4 1/2-Inch depth
  • Very good cutting results, also with cutter's front part
  • Optimized leverage, constantly handforce while cutting
  • Ergonomic handles, good handling
  • Blades made of hardened cutting steel (replaceable spare part)
  • Black-Oxide surface, ergonomically designed two-component handles
  • Special lever transmission
  • New, very effective blade geometry
  • Head Black-Oxide finish, two-color dual component handles
  • For cutting and shortening cable ducts, also for plastic material up to 4.0 mm thickness



P/N Finish Length Weight

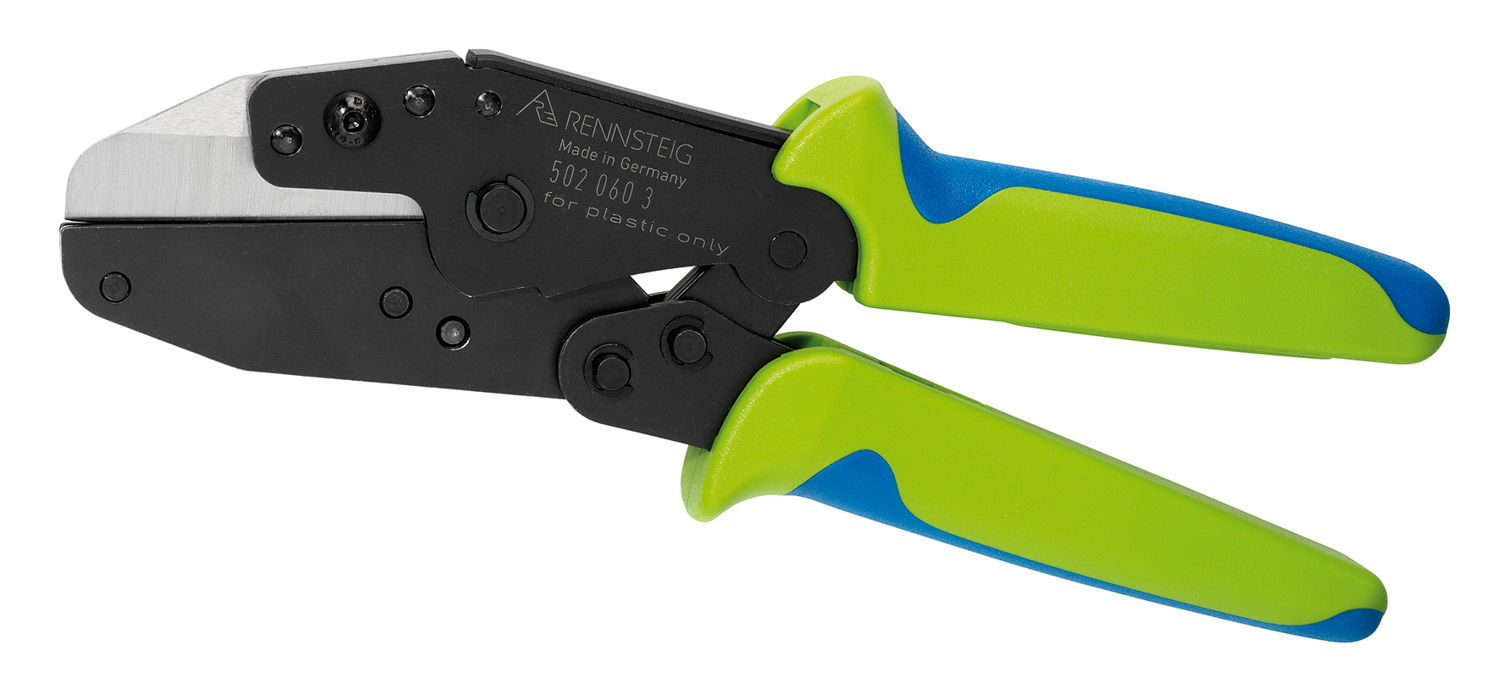

502 060 3 Wiring Duct Cutter with Cutting Length 60 mm 220 mm 450 g (1 lbs)

Request a Quote!

Buy from Distribution

Distributor Buy
Dakota Electronics Visit Site
FiberFin Visit Site
502 110 3 Wiring Duct Cutter with Cutting Length 110 mm (without silver support) 280 mm 520 g (1.1 lbs)

Request a Quote!

Buy from Distribution

Distributor Buy
Dakota Electronics Visit Site
502 111 3 Wiring Duct Cutter with Cutting Length 110 mm and support (positioner for bevel cuts) for plates/trunks 280 mm 630 g (1.4 lbs)

Request a Quote!

Buy from Distribution

Distributor Buy
Dakota Electronics Visit Site
DigiKey Visit Site



Available Spare parts

P/N Finish

Buy from Distribution

502 111 0 0 Spare support for plates/trunks for Duct Cutter 502 110 3 / 502 111 3 (110 mm Length)

Request a Quote!

Distributor Buy
Industrial Control Direct Visit Site
502 110 0 0 Spare blade for Duct Cutter 502 110 3 / 502 111 3 (110 mm Length)

Request a Quote!

Distributor Buy
Industrial Control Direct Visit Site



Finish Black-Oxide
Handles Two-Component



warningWarning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Technical changes and errors are reserved.
