Crimp System Tool for Crimping of Plug Connectors for COAX Cables

Crimp System Tool for crimping of plug connectors for COAX cables of the series Belden, Belden 9913, LCD 58, LCD 90, RG 11, RG 15, RG 174, RG 178, RG 179, RG 188, RG 195, RG 196, RG 212, RG 213, RG 29, RG 316, RG 58, RG 58, RG 59, RG 6, RG 62, RG 71, Twinax.

InfoRequest quote and/or buying option available.

This crimp tool brings it all together:

  • High-precision ratchet mechanism for complete crimps
  • Parallel crimping performance for even crimps
  • 1.2 metric tons pressure at crimping face, with minimal hand effort
  • Interchangeable high-precision crimping die set
  • Interchangeable locator for precision positioning of terminals
  • Ensures accurate, solderless, electrical connections
  • More than 400 die sets (Special locators for other contacts are available)
  • Customized die sets on request
  Crimp System Tool - Frame only
P/N Please see below
Description Crimp System Tool for various Coax-Connector applications (Black-Oxide Finish)
Handle Type Two-Component handles
Length 7 7/8"
Crimp System Tool - Frame only
Weight 1.4 lbs



Available Tools

P/N Description Contact/Connector Type
Coax Connector
Wrench/Crimp size
Wrench / Crimp size mm

624 100 3 Pliers with Dies for Coax-Connectors

RG 58, RG 59, RG 62, RG 71

5.4 / 4.48 / 1.72

Request a Quote!

624 110 3 Pliers with Dies for Coax-Connectors

RG 58, RG 174

5.4 / 4.52 / 1.72

Request a Quote!

624 111 3 Pliers with Dies for Coax-Connectors

RG 59, RG 6

8.23 / 6.48 / 1.72 / 1.07

Request a Quote!

624 113 3 Plier with Dies for Coax-Connectors

LCD 58, LCD 90

6.25 / 8.1

Request a Quote!

624 114 3 Pliers with Dies for Coax-Connectors

RG 213, RG 11

10.9 / 2.54

Request a Quote!

624 117 3 Pliers with Dies for Coax-Connectors RG 58 1.46 / 5.41 / 1.69

Request a Quote!

624 118 3 Pliers with Dies for Coax-Connectors RG 316U 0.8 / 3.25 / 1.69

Request a Quote!

624 119 3 Pliers with Dies for Coax-Connectors

1.0 / 6.6

1.75 / 9.73

Request a Quote!

624 123 3 Pliers with Dies for Coax-Connectors RG 59B, RG 62A 1.69 / 6.48

Request a Quote!

624 124 3 Pliers with Dies for Coax-Connectors RG 316 1.38 / 3.25

Request a Quote!

624 125 3 Pliers with Dies for Coax-Connectors RG 195 A 1.69 / 4.52

Request a Quote!

624 126 3 Pliers with Dies for Coax-Connectors RG 178 B, RG 196 A 0.8 / 2.67

Request a Quote!

624 127 3 Pliers with Dies for Coax-Connectors RG 15, RG 29 1.69 / 5.41 / 3.8

Request a Quote!

624 128 3 Pliers with Dies for Coax-Connectors RG 212 U 1.69 / 8.23

Request a Quote!

624 130 3 Pliers with Dies for Coax-Connectors RG 58 C/U 5.41

Request a Quote!

624 131 3 Pliers with Dies for Coax-Connectors RG 316 U 1.25 / 3.25

Request a Quote!

624 132 3 Pliers with Dies for Coax-Connectors RG 58 C/U, RG 174 U 1.46 / 5.62 / 1.2

Request a Quote!

624 133 3 Pliers with Dies for Coax-Connectors RG 316 D 0.8 / 3.65 / 1.69

Request a Quote!

624 134 3 Pliers with Dies for Coax-Connectors RG 178 B/U, RG 196 A/U 0.8 / 2.67 / 1.69

Request a Quote!

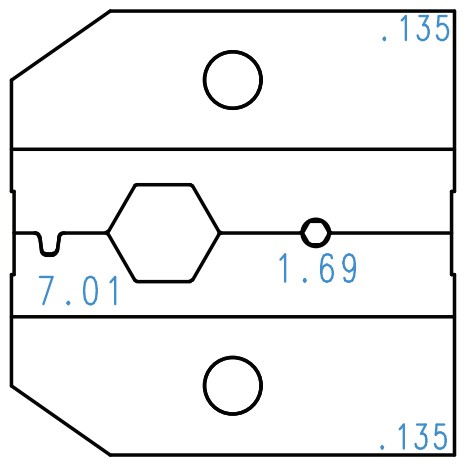

624 135 3 Pliers with Dies for Coax-Connectors RG 6 A/U 1.69 / 7.01

Request a Quote!

624 136 3 Pliers with Dies for Coax-Connectors Twinax 1.75 / 8.23

Request a Quote!

624 139 3 Pliers with Dies for Coax-Connectors Belden 9913 10.9 / 3.25

Request a Quote!

624 140 3 Pliers with Dies for Coax-Connectors RG 58, RG 174, RG 316 3.25 / 4.52 / 5.41 / 1.72 / 1.07

Request a Quote!

624 158 3 Pliers with Dies for Coax-Connectors Belden 7.0 / 8.4 / 8.1

Request a Quote!

Distributor Buy
Transcat Visit Site
624 159 3 Pliers with Dies for Coax-Connectors

RG 58, RG 174, RG 316, RG 188

3.25 / 4.52 / 5.4 / 1.72 / 1.07 / 0.72

Request a Quote!

624 267 3 Pliers with Dies for Coax-Connectors

-

3.9 / 3.5 / 2.6 / 2.5

Request a Quote!

624 658 3 Pliers with Dies for Coax-Connectors

RG 195 A, RG 316

4.52 / 3.8 / 1.72 / 1.2 / 0.73

Request a Quote!

624 772 3 Pliers with Dies for Coax-Connectors

RG 174, RG 178, RG 179, RG 188, RG 196, RG 316

2.67 / 3.25 / 3.83

Request a Quote!

624 1005 3 Pliers with Dies for Coax-Connectors - 3.5 / 2.8 / 2.6 / 2.5

Request a Quote!
