Crimp Die Set for Sumitomo MT, HW, HM Sealed 090II Male Terminals

Crimp Die Set for Sumitomo MT, HW, HM Sealed 090II Male Terminals

P/N 624 396 3 012

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of Male Sumitomo Terminal, Cable Range 0.35/0.5/0.8/1.0 SQ-MM.

InfoRequest quote and/or buying option available.

Terminal technical info:

Terminal P/N 1500-0105 (617108-BW-S) / 1500-0134

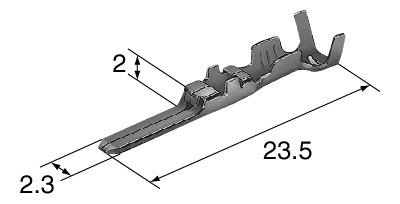

Picture Sumitomo MT, HW, HM Sealed 090II Male Terminal
Family MT, HW, HM
Series 090II
Gender Male
Sealed Sealed
Cable Range AWG 22 / 20 / 18 / 16
Cable Range SQ-MM 0.35 / 0.50 / 0.80 / 1.00
