CRIMP DIE SET for Yazaki 1.5 x 0.8 Series terminals

P/N 624 534 3 012 RT

Complete box with 1 die set, 1 locator, 1 wire stop, spare parts for crimping of Yazaki terminals 7114-4102-02 (97BG-14421-ADA), 7114-4103-02 (97BG-14421-AEA), 7114-4102-08 (97BG-14421-AHA), 7114-4103-08 (97BG-14421-AJA), 7114- 4102-06 (EU5T-14421-TA), 7114-4103-06 (EU5T-14421-UA), 7116-4102-02, 7116-4103-02, 7116-4102-08, 7116-4103-08.

InfoRequest quote and/or buying option available.

Terminal technical info:

Terminal P/N 7116-4102-02 7116-4102-08 7116-4102-06 7116-4103-02 7116-4103-08 7116-4103-06 7116-4105-02
Picture (Unit: mm) Yazaki Female terminal sample picture
Gender Female
Plating Sn Au AG Sn Au AG
Europe (SQ-MM) 0.35 - 0.5   0.75 - 1.0
USA (AWG) 22 - 20   18 - 16
Japan (SQ-MM) 0.3 - 0.5   0.85 - 1.25



Terminal P/N

7114-4102-02
(97BG-14421-ADA)

 7114-4102-08
(97BG-14421-AHA)		 7114-4102-06
(EU5T-14421-TA)		 7114-4103-02
(97BG-14421-AEA)		 7114-4103-08
(97-BG-14421-AJA)		 7114-4103-06
(EU5T-14421-UA)

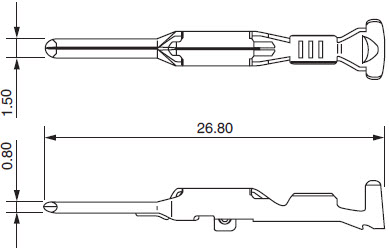

Picture (Unit: mm)

Yazaki Male terminal sample picture


Gender Male
Plating

Sn

 Au AG Sn Au AG
Europe (SQ-MM) 0.35 - 0.5   0.75 - 1.0
USA (AWG) 22 - 20   18 - 16
Japan (SQ-MM) 0.3 - 0.5   0.85 - 1.25
