P/N Please click here.
- Electro-hydraulic Li-Ion battery-powered tool for crimping turned male and female contacts
- 20kN pressure
- 2.8 second crimp cycle
- One battery charge lasts for about 300 with average load
- Recharge in under 30 minutes
- Multifunctional digital display, with settings shown in mm, inches or MIL selector settings according to M22520/1-01
- Takes 4/8 indent heads from Rennsteig
- 360° swivel head
- Indent positioning precision to 1/100 mm
- Wear monitoring
- Recalibration function
Request quote and/or buying option available.
The construction of Crimping Device HC 20 was engineered, constructed, and manufactured in accordance with the low-voltage guidelines 2014/35/EU (CE) only.
 |
 |
 |
 |
|||||
| P/N | 6702 0100 1 | 6753 0000 6 | 6763 0000 6 | 6756 0000 6 | ||||
| Type | Tool in case with EU charger (without crimping unit) | Crimping unit with standard indents | Crimping unit with 19/32" pass-through |
Crimping unit with indents acc.to MIL/SAE AS22520 Adapter ring enables the use of MIL 22520/7-01, MIL 22520/2-01 positioners. |
||||
| Details |
Tool body HC 20 in case w/o Crimping heads Basic equipment:
|

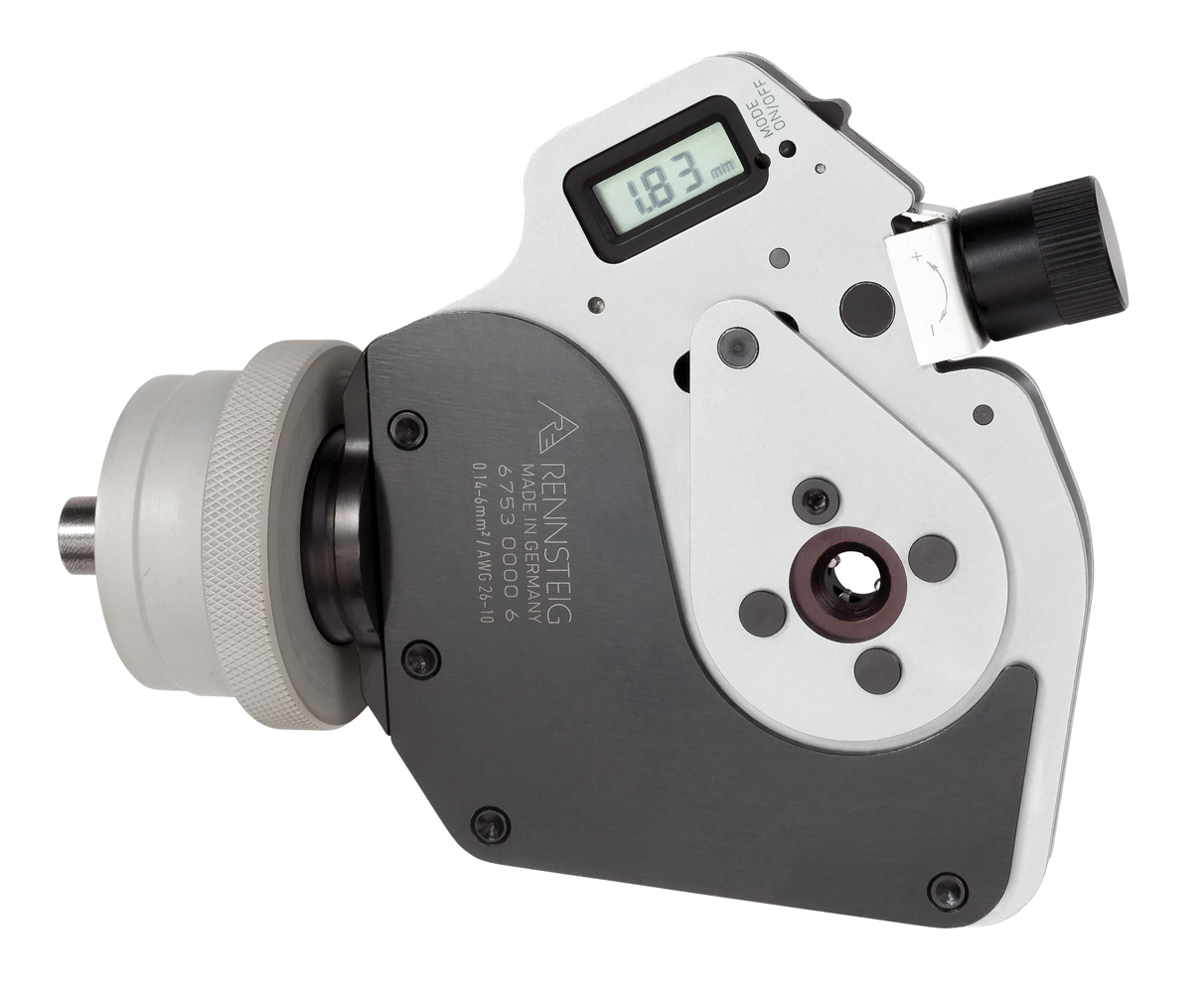

Crimping unit for industrial contacts.
|
Crimping unit with larger pass-through for larger industrial contacts.
|
Crimping unit for MIL contacts.
|
||||
|
||||||||
| Capacity | from 26 AWG up to 6 AWG (Depending on the crimping head) | 26 AWG to 10 AWG (similar to 0.14 - 6.0 SQ-MM) |
16 AWG to 6 AWG (similar to 1.5 - 16.0 SQ-MM) |
26 AWG to 10 AWG (similar to 0.14 - 6.0 SQ-MM) |
||||
| Length |
12 9/16"
|
|
|
|
||||
| Overall Size |
20 15/32" x 17 3/4" x 4 7/16" (Case)
The case provides space for up to three crimping units, but these must be ordered separately. |
16 1/2" x 5 3/4" x 2 1/4"
(Tool body with installed crimping unit) |
16 1/2" x 5 3/4" x 2 1/4"
(Tool body with installed crimping unit) |
16 1/2" x 5 3/4" x 2 1/4"
(Tool body with installed crimping unit) |
||||
| Weight | 9.5 lbs. | 2.3 lbs. | 2.65 lbs. | 2.3 lbs. | ||||
| Request a Quote! | Request a Quote!
Buy from Distribution
|
Request a Quote! | Request a Quote!
Buy from Distribution
|
|||||
Visit Site
Customized locators for different applications available on request.
