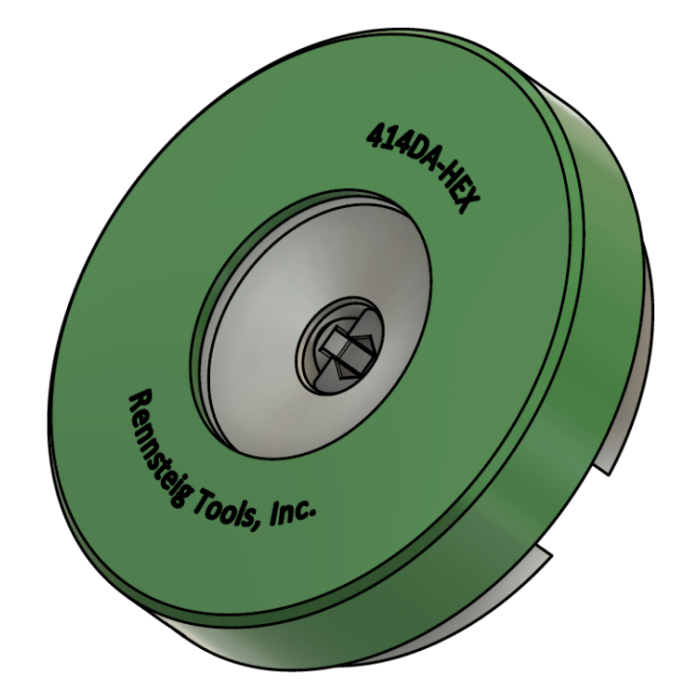

P/N 414DA-HEX
Request quote and/or buying option available.
The hexagonal die set will work for the below mentioned applications but is not limited to those.
- Die Assembly for 400 Series Multi-Indent Crimping Tool
- For Uninsulated Terminals, Splices and Coax Connectors
Available Die Sets
| P/N |
Wrench/Crimp Size
 |
|---|---|
| 414DA-HEX.080 | 0.080 inch / 2.03 mm |
| 414DA-HEX.090 | 0.090 inch / 2.29 mm |
| 414DA-HEX.100 | 0.100 inch / 2.54 mm |
| 414DA-HEX.110 | 0.110 inch / 2.79 mm |
| 414DA-HEX.120 | 0.120 inch / 3.05 mm |
| 414DA-HEX.130 | 0.130 inch / 3.30 mm |
| 414DA-HEX.140 | 0.140 inch / 3.56 mm |
| 414DA-HEX.150 | 0.150 inch / 3.81 mm |
| 414DA-HEX.160 | 0.160 inch / 4.06 mm |
| 414DA-HEX.170 | 0.170 inch / 4.32 mm |
| 414DA-HEX.180 | 0.180 inch / 4.57 mm |
| 414DA-HEX.190 | 0.190 inch / 4.83 mm |
| 414DA-HEX.200 | 0.200 inch / 5.08 mm |
| 414DA-HEX.220 | 0.220 inch / 5.59 mm |
| 414DA-HEX.240 | 0.240 inch / 6.10 mm |
| 414DA-HEX.260 | 0.260 inch / 6.60 mm |
| 414DA-HEX.280 | 0.280 inch / 7.11 mm |
General Information
|
|
| P/N | 414DA-HEX |
| Description | Die Assembly for 400 Series Multi-Indent Crimping Tool |
| Length |  |
| Weight | 1.4 lbs |
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Technical changes and errors are reserved.
