P/N 045-046
Request quote and/or buying option available.
Full cycle management for Rennsteig Pico-Series crimping tools.
- Patent pending
- Optional upgrade for all Rennsteig Pico-Series crimping tools
- Available as a retrofit solution for existing pneumatic tools
- Pneumatic tool not included when bought.
Key Features
- Sensor confirms when the final position of the indents is reached, signaling with a green button on the display
- The Unit allows you to adjust the holding time in the end position to reduce the spring-back effect after crimping
- Control unit with color touch display
- User-friendly menu with dual access levels, operator level and manager level (enhanced settings, protected by password)
- Daily counter: Resettable for daily tracking
- Tracking based on serial numbers: Tracks total usage per tool
- Control unit informs operator about necessary tool calibration cycles and service intervals
 |
 |

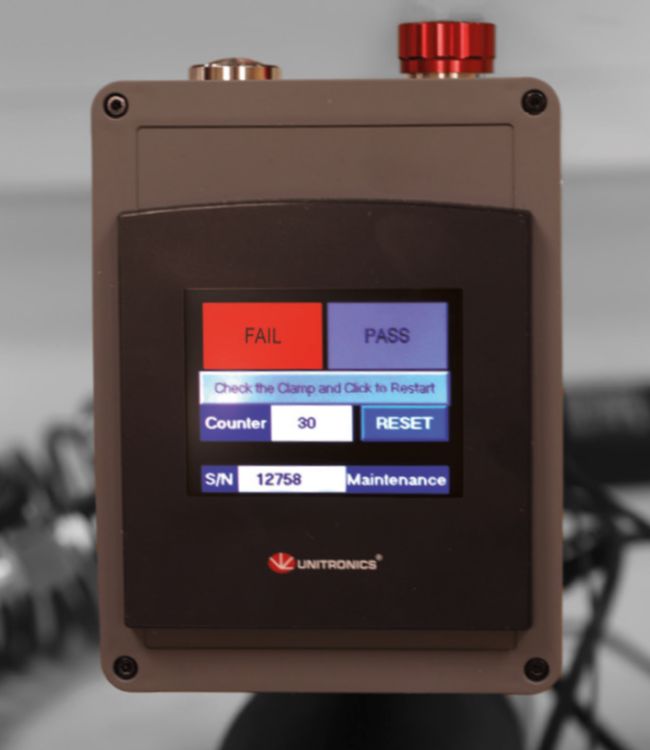

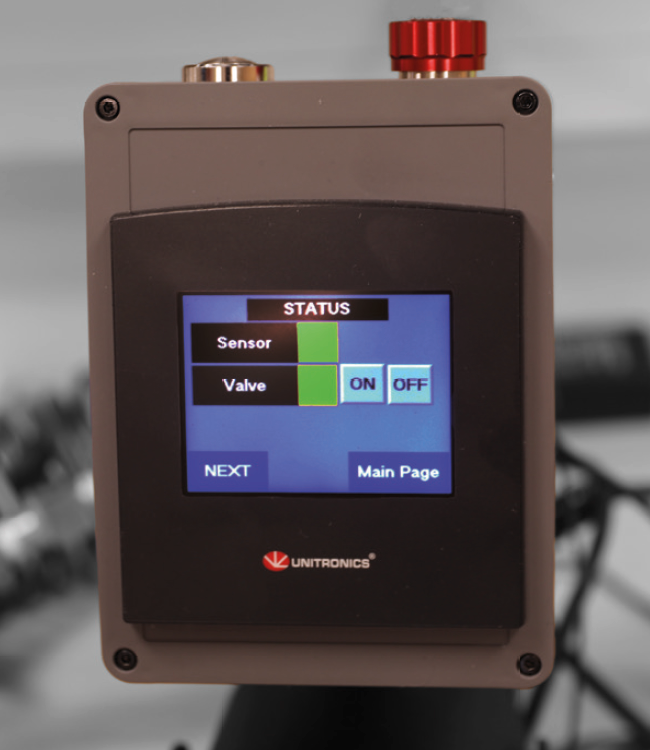

| If the indenters do not reach the final position the Unit will show that the crimp failed and give a sound signal as well. | The Unit has a dedicated calibration mode where you must set-up the sensor before using the Unit for the first time. In this state you can also calibrate die sets and the machine. |
General Information
|
|
| P/N | 045-046 |
| Description | Full Cycle Management |
| Length |  |
| Weight | |
Request a Quote! |
This Unit can be used with the following Tools after they have been upgraded: 400-BHD, 400-BEC, 400-B-1, 400-B-1EC, 500-D, 500-DEC, 500-D-1, 500-D-1EC
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Technical changes and errors are reserved.
