P/N 680-15006
- Terminal Removal Tool, for example, to use with MOLEX 150 / Apex 150
- Comparable with SPX Kent Moore part no. J-38125-217 or 54241678 and Molex 63813-1500 and Bosch 11 15 058.
- This tool works with all connectors of the MX150 Sealed and Unsealed Connector System Series 33472 / 33482
Request quote and/or buying option available.
- For example to use with
-
Housing Terminal TE Connectivity 33482-1242 | MX150 ASSY 1.5 BLD 2X6 BLK A/10 Molex Electronics 33000-1002 | MX150 Male Terminal, Tin Plating, 16, 18 and 20 AWG, Left Reel Payoff
Molex Electronics 33012-3003 | MX150 Female Terminal Sealed, Tin Plating, 22 AWG, Left Reel Payoff
Molex Electronics 33472-1331 | 12P Socket Housing, Black Molex Electronics 33000-1002 | MX150 Female Terminal Sealed, Tin Plating, 22 AWG, Left Reel Payoff
Molex Electronics 33012-3003 | MX150 Female Terminal Sealed, Tin Plating, 22 AWG, Left Reel Payoff
-
- Longer Lifetime compared to other Insertion & Removal Tools.
Connector overview (MX150)
4 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-4001, 33472-4002, 33472-4006, 33472-4007, 33472-4042, 33472-4043, 33472-4044, 33472-4045, 33472-4101, 33472-4102, 33472-4103, 33472-4104, 33472-4105, 33472-4106, 33472-4107, 33472-4108 | Black Dark Gray Light Gray Stone Gray |
 |
33482-4001, 33482-4002, 33482-4103, 33482-4104 | Black Dark Gray Light Gray Stone Gray |
6 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-0601, 33472-0602, 33472-0606, 33472-0607, 33472-0668, 33472-0669, 33472-0670, 33472-0671, 33472-0701, 33472-0702, 33472-0705, 33472-0706, 33472-0714, 33472-0715, 33472-0716, 33472-0717 |
Black |
 |
33482-3601, 33482-3602, 33482-3628, 33482-3629 | Black Dark Gray Light Gray Stone Gray |
8 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-4801, 33472-4802, 33472-4806, 33472-4807, 33472-4879, 33472-4880, 33472-4881, 33472-4882, 33472-4891, 33472-4901, 33472-4902, 33472-4906, 33472-4907, 33472-4922, 33472-4923, 33472-4924, 33472-4925 | Black Dark Gray Light Gray Stone Gray Yellow |
 |
33482-4801, 33482-4802, 33482-4852, 33482-4853 | Black Light Gray Dark Gray Stone Gray |
12 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-1201, 33472-1202, 33472-1206, 33472-1207, 33472-1253, 33472-1254, 33472-1259, 33472-1260, 33472-1301, 33472-1302, 33472-1306, 33472-1307, 33472-1354, 33472-1407, 33472-1408, 33472-1409, 33472-1410, 33472-1411, 33472-1412, 33472-1413, 33472-1414 | Black Light Gray Dark Gray Stone Gray |
 |
33482-6201, 33482-6202, 33482-6261, 33482-6262 | Black Light Gray Dark Gray Stone Gray |
16 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-1601, 33472-1602, 33472-1606, 33472-1607, 33472-1726, 33472-1767, 33472-1768, 33472-1769, 33472-1770, 33472-1886, 33472-3001, 33472-3002, 33472-3003, 33472-3004, 33472-3005, 33472-3006, 33472-3007, 33472-3008 | Black Light Gray Dark Gray Stone Gray |
|
33482-8601, 33482-8602, 33482-8725, 33482-8726 | Black Light Gray Dark Gray Stone Gray |

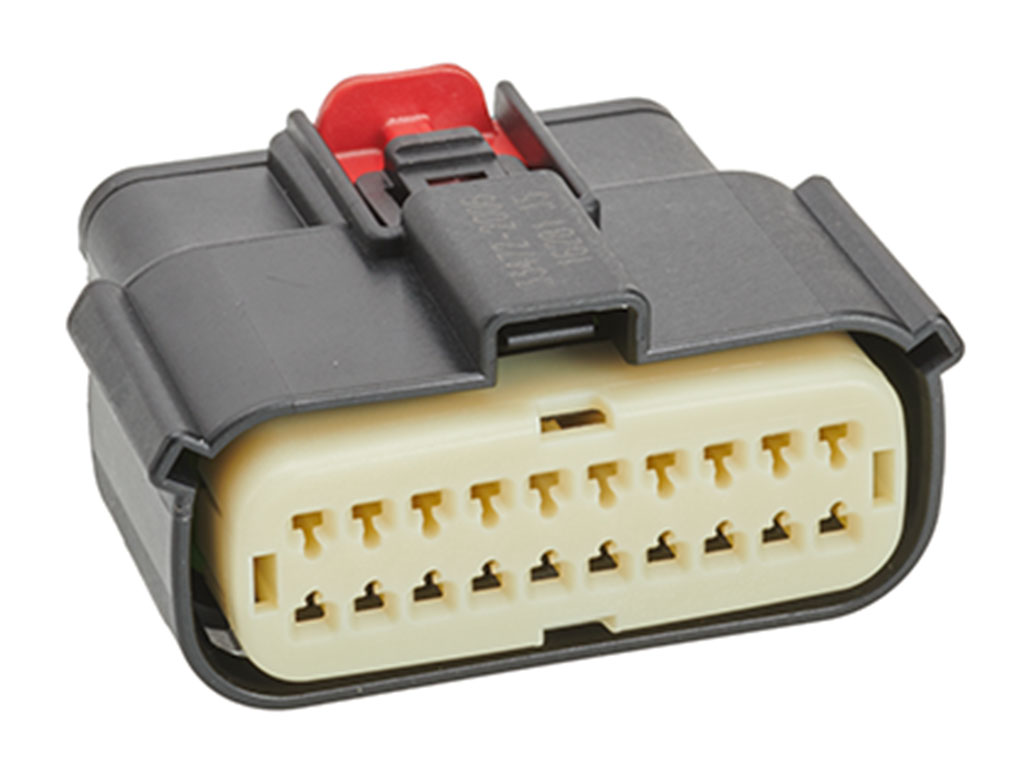

20 Way Circuits (max)
| Housing sample picture | P/N | Color (according to P/N) |
|---|---|---|
 |
33472-2001, 33472-2002, 33472-2006, 33472-2007, 33472-2060, 33472-2061, 33472-2062, 33472-2063, 33472-2089, 33472-2115, 33472-2116, 33472-2118, 33472-2119, 33472-2120, 33472-2217, 33472-2501, 33472-2502, 33472-2503, 33472-2504, 33472-2505, 33472-2506, 33472-2507, 33472-2508, 33472-2509 | Black Dark Gray Light Gray Stone Gray Yellow |
 |
33482-2101, 33482-2102, 33482-2141, 33482-2154, 33482-2155 | Black Light Gray Yellow Dark Gray Gray |
