Weather-Pack Kit - Master

Weather Pack Kit - Master

P/N 624 101-09 RT

InfoRequest quote and/or buying option available.

YouTube video

Rennsteig Weather Pack Crimp Tool Kit - Master

  • Complete kit for crimping all Delphi (Aptiv) Weather Pack terminals: 0.35mm2, 0.5mm2, 0.8mm2, 1mm2, 2mm2, 3mm2 (22, 20, 18, 16, 14, 12 AWG) .
  • Kit contains:

Shop now

Request a Quote!

  • Superior terminal crimping process meeting the OEM crimp specification.
  • One step crimp process: Crimping both the wire and seal with one action.
  • PEW12 Crimp System Tool frame has parallel crimp action providing 2,645 pounds of force/pressure at the crimp surface
    • Replacement crimp dies are replaceable if lost or improperly used and damaged.
    • PEW12 Crimp System Tool frame also accepts over 1000+ interchangeable die sets for all types of applications.
  • All components, including the rugged case, are quality Made in Germany.

With this kit, you are able to crimp the following terminals.

Terminal P/N Terminal Family Wire Cross Section Gender Sample Picture
12089305 W/P  1.00 - 2.00 SQ-MM Male
12020801 W/P 0.35 SQ-MM Female
12089040 W/P  0.50 - 0.80 SQ-MM Male
12089108 W/P 0.50 - 0.80 SQ-MM Female
12089188 W/P  0.50 - 0.80 SQ-MM Female
12089307 W/P  0.22 - 0.35 SQ-MM Male
12124580 W/P  1.00 - 2.00 SQ-MM Female
12124581 W/P  2.50 - 3.00 SQ-MM Female
12124582 W/P 1.00 - 2.00 SQ-MM Male
12124587 W/P  2.50 - 3.00 SQ-MM Male
12191506 W/P 0.50 - 0.80 SQ-MM Male
12191586 W/P  0.50 - 0.80 SQ-MM Female
12191587 W/P  0.50 - 0.80 SQ-MM Female

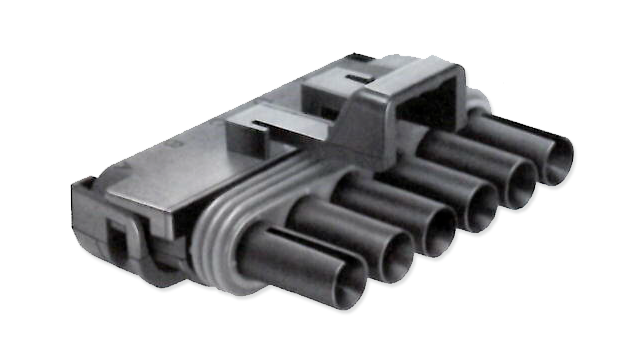

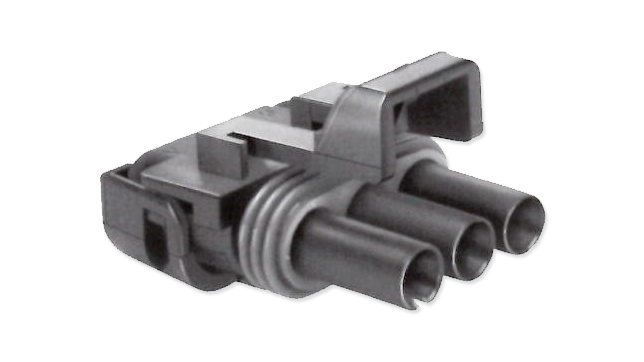

The above terminals can be used to build the following housings:
