P/N 629 006 3 RT

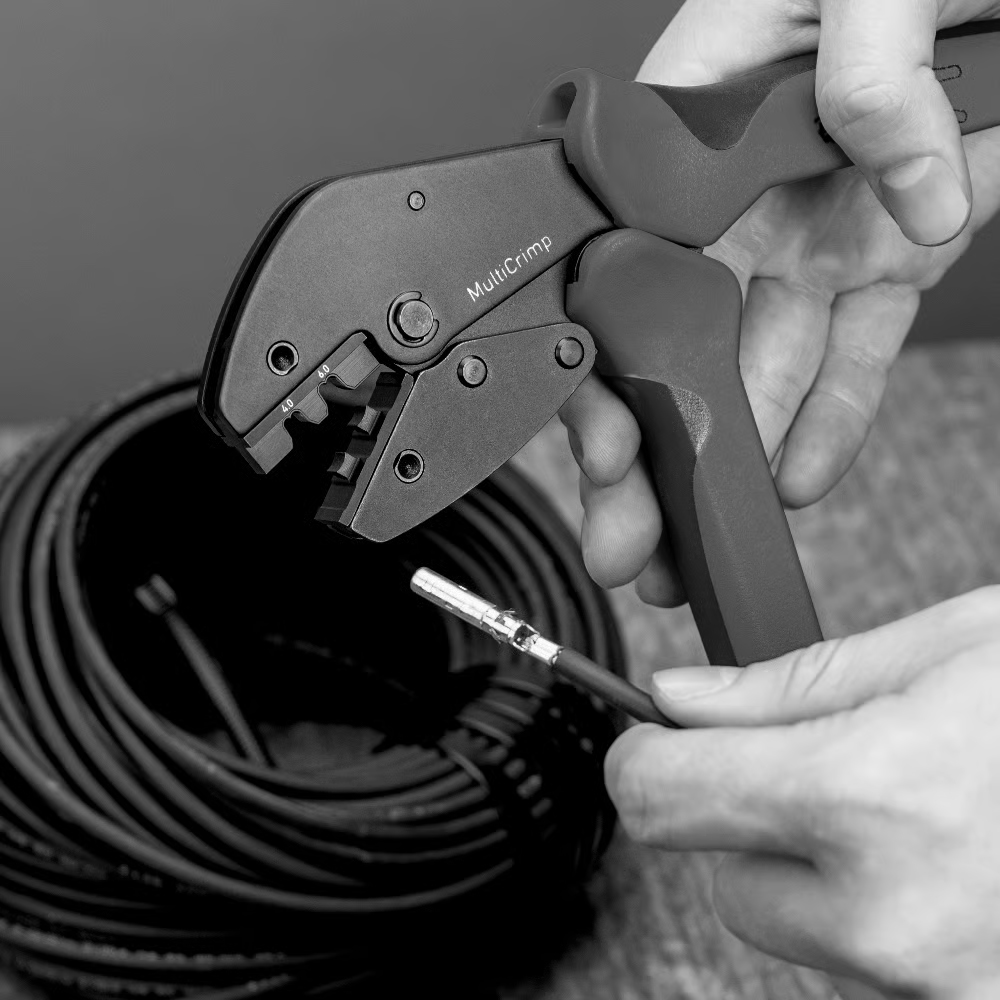

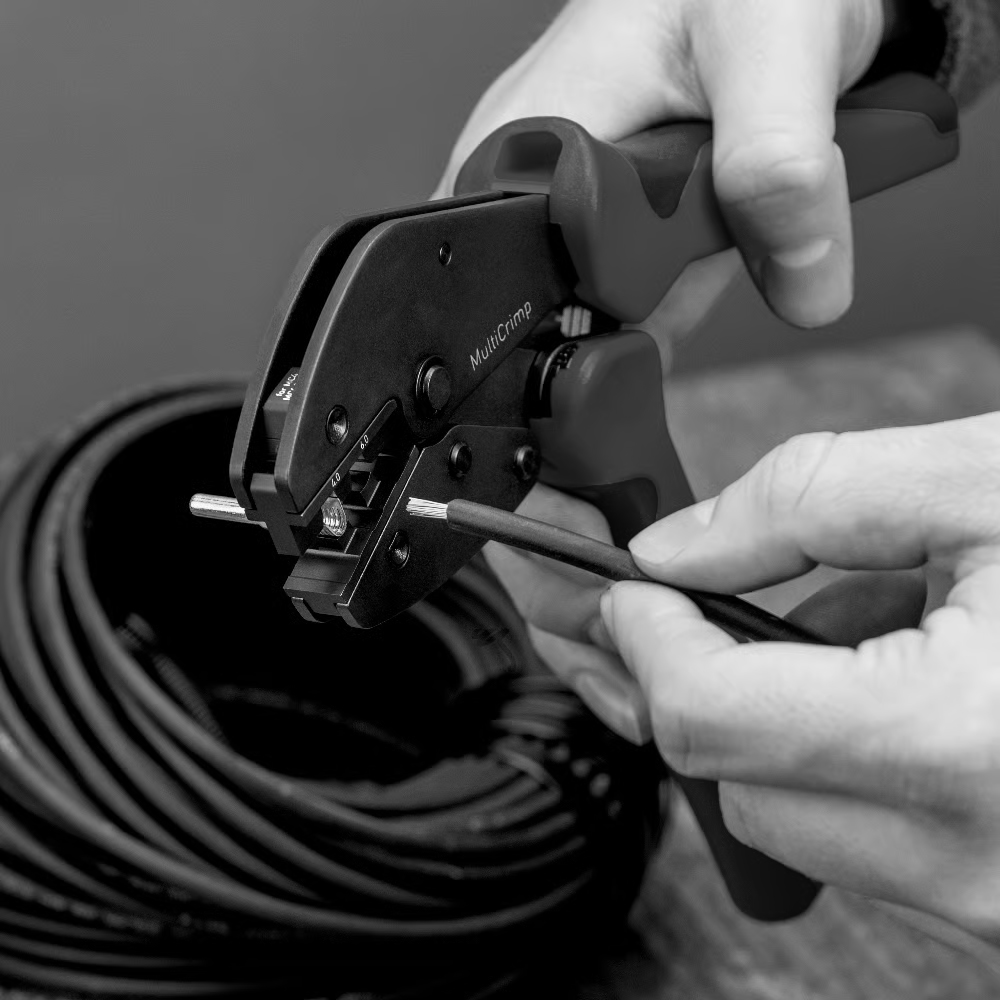

This versatile tool for MC4™/MC4™ Evo 2 is the perfect choice for PV installations within our MultiCrimp® family. An ideal solution for smaller service jobs and the perfect companion for skilled workers. Your perfect first step into the professional installer’s world.

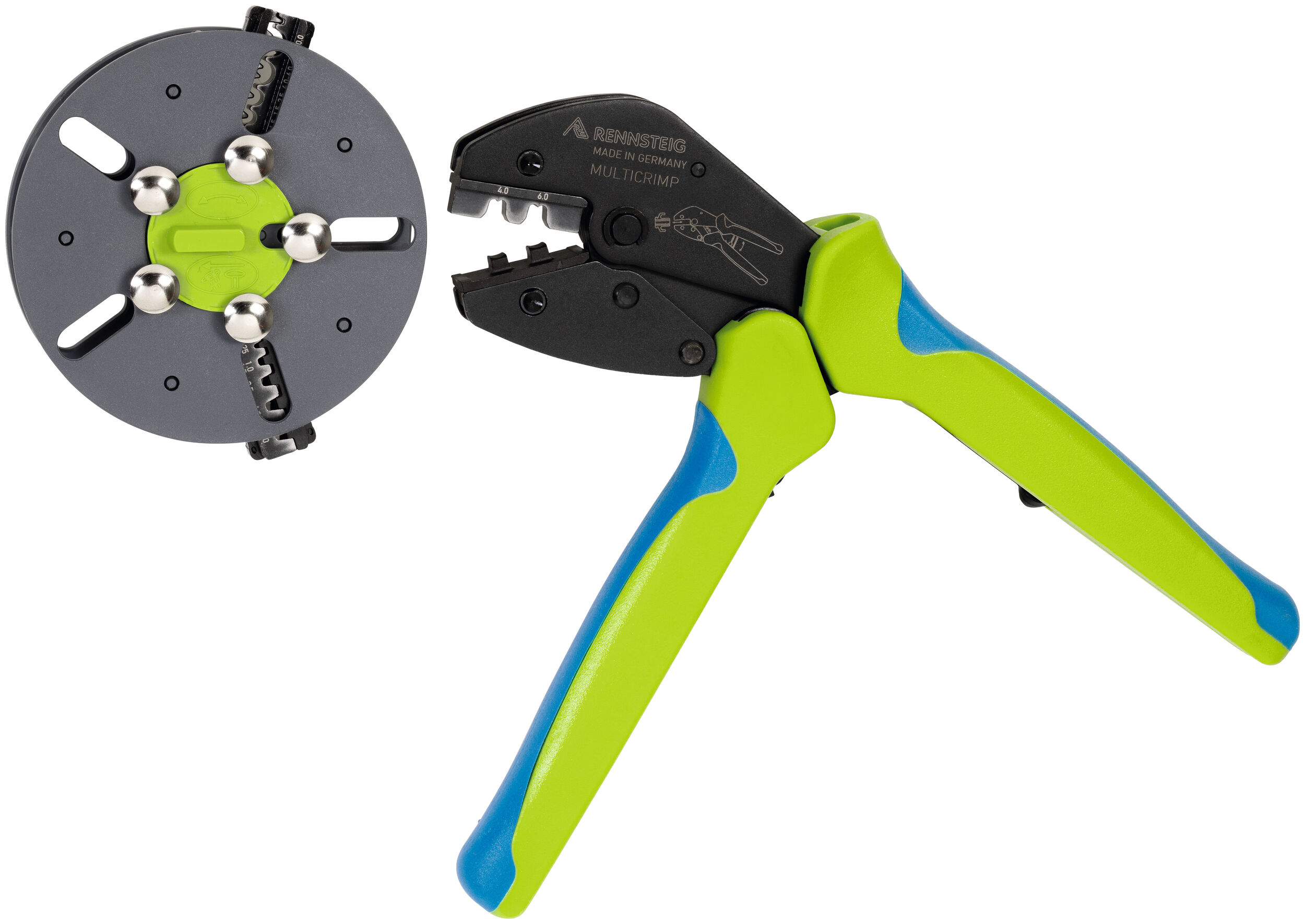

This Rennsteig MultiCrimp® brings it all together:
- One tool for 3 common application areas
- Patented storage and quick-change system
- Interchangeable high-precision crimping die set
- Secure and dirt-proof storage of the interchangeable crimping dies in a round magazine
- Repetitive, high crimping quality due to precision profiles and integral lock with very fine adjustment
- Ergonomically shaped two-color dual-component handles for one or two-hand operation
- Top German build quality throughout
How to change the Die Sets in 6 quick steps
 |
||
| P/N | 629 006 3 RT | |
| Finish | Tool with 3 die sets for crimping of MC4™ and MC4™ EVO 2 terminals | |
| Application
|
Staubli MC4™-EVO 2 |
AWG 12/10 | 4 / 6 SQ-MM PV-SP4-EVO 2/6, PV-BP4-EVO 2/6, PV-SP4-EVO 2/10, PV-BP4-EVO 2/10 |
  |
Non-Insulated Terminals / Splice Connector |
AWG 20-16/16-14/12-10/10-8 |
 |
End-Sleeves/Ferrules (with and without collar) |
AWG 24-18/18-16/14/12/10 |
 |
 |
 |
General tool information
| Handle Type | Two-component handles |
|---|---|
| Length |
12 13/32"
|
| Weight | 2 lbs. |
Assembly tool for MC4™ application: Rennsteig Assembly Key for MC4™ connectors
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Technical changes and errors are reserved.
