P/N 619 1749 3 RT
Our quality solution for the experienced DIY-Expert: the entry-level tool for MC4™ and MC4™ Evo 2 connectors - a 3-in-1 designed tool for cutting, stripping, and crimping with precision. Perfectly suited for 6 SQ-MM (10 AWG) cables, this tool is the ideal companion for small installations, repairs, and off-grid applications.
Whether you're working on residential solar systems, RVs, garden sheds, or boats, this versatile tool delivers reliability and efficiency for experienced DIY enthusiasts.
Request quote and/or buying option available.
- Factory-calibrated: Crimp pressure is precisely preset.
- High crimping force thanks to optimized lever transmission.
- Comfortable handling with ergonomic grip design and lightweight construction.
- Specialized design: The crimp insert is optimized for the frame and is not interchangeable or available as a spare part.
The 3-in-1 compact and reliable solution for your DIY solar projects.
|
||
| P/N | 619 1749 3 RT | |

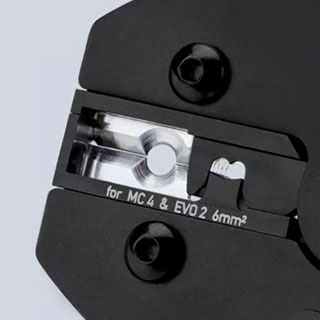

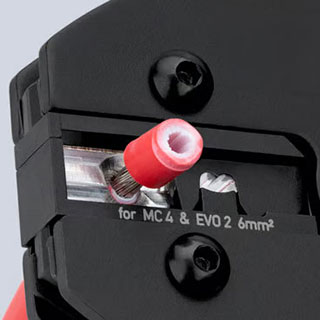

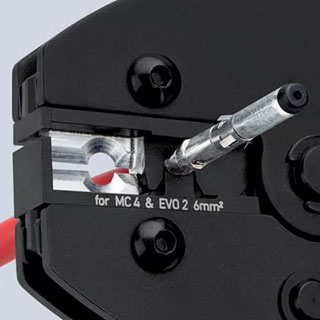

| Finish | Tool with die set for crimping of MC4™ and MC4™ EVO 2 terminals | |
| Capacity | AWG 10 | 6 SQ-MM | |
Application |
Staubli MC4™ |
PV-KBT4/6I-UR (4/6 SQ-MM | 12/10 AWG) — PV-KST4/6I-UR (4/6 SQ-MM | 12/10 AWG) |
|
|
Staubli MC4™-EVO 2 |
PV-SP4-EVO 2/6, PV-BP4-EVO 2/6, PV-SP4-EVO 2/10, PV-BP4-EVO 2/10 |
 |
 |
 |
General tool information
| Handle Type | Two-component handles |
|---|---|
| Details |
|
| Length |
8 1/2"
|
| Weight | 1.02 lbs. |
Assembly tool for MC4™ application: Rennsteig Assembly Key for MC4™ connectors
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Technical changes and errors are reserved.
