• Crimping tool for thick-walled connectors (with and without seal)
• Interchangeable crimping dies, locators, and positioning guides for a wide range of contacts

• Parallel crimping jaw-closing action
• Low hand force required, thanks to efficient lever action
• Crimping force 15 kN
• Forced-lock completion of the crimping process to ensure reliable crimping results (with emergency release)
• Re-adjustable crimp pressure
• One- and two-handed operation
• Lightweight aluminum tool body
• Dip-coated handles

For UNSEALED terminals
P/N			695 015 2 1 RT	695 015 3 0 RT	695 015 3 01 RT
Finish			Complete crimp tool with die set and locator	Die Set only	Die Set and Locator only
Capacity			Europe: 6 SQ-MM USA: AWG 8 / 6 Japan: 6 SQ-MM

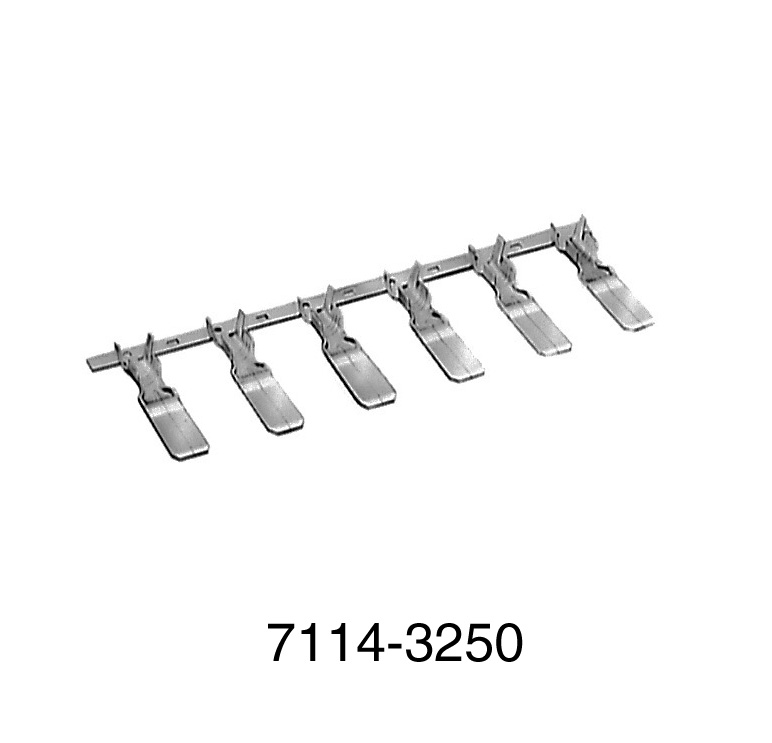

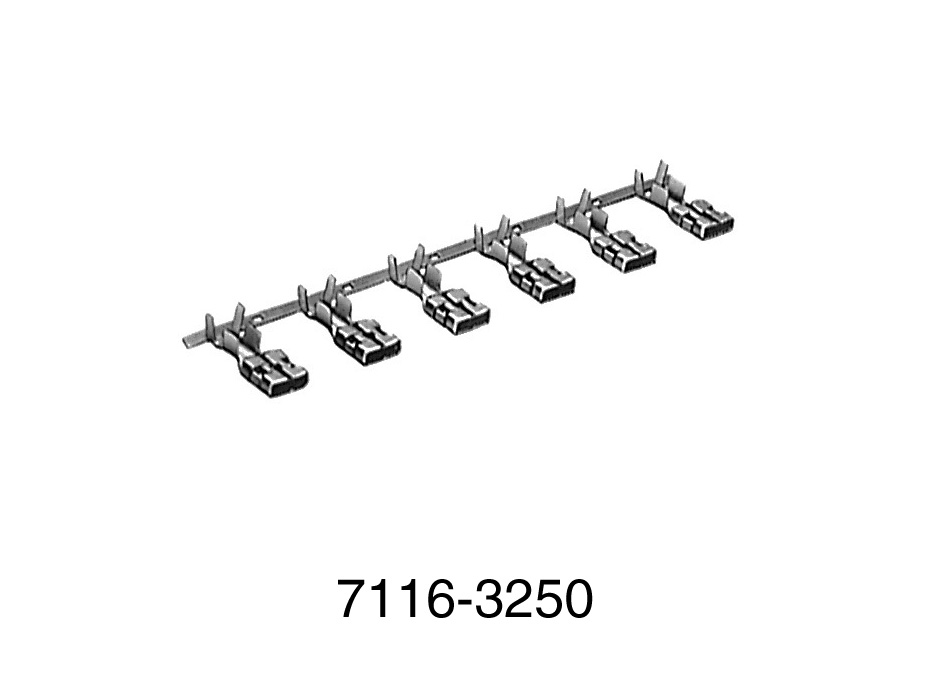

Application	Yazaki	Terminal P/N	7114-3250 / 7116-3250
		Family	58 Connector L Type 58 Connector Y Type 91 Connector L-MC Type
		Unsealed/Sealed	Unsealed
		Male/Female	The tool works with Male and Female terminals
			Request a Quote! Buy from Distribution EFI Connection Visit Site	Request a Quote! Buy from Distribution EFI Connection Visit Site	Request a Quote! Buy from Distribution EFI Connection Visit Site

For SEALED terminals
P/N			695 025 2 1 RT	695 025 3 0 RT	695 025 3 01 RT
Finish			Complete crimp tool with die set and locator	Die Set only	Die Set and Locator only
Capacity			Europe: 6 SQ-MM USA: AWG 8 / 6 Japan: 6 SQ-MM
Application	Yazaki	Terminal P/N	7114-3250 / 7116-3250
		Family	58 Connector L Type 58 Connector Y Type 91 Connector L-MC Type
		Unsealed/Sealed	Sealed
		Male/Female	The tool works with Male and Female terminals
			Request a Quote! Buy from Distribution EFI Connection Visit Site	Request a Quote! Buy from Distribution EFI Connection Visit Site	Request a Quote! Buy from Distribution EFI Connection Visit Site

General tool information

Handle Type	Dip-coated
Length	13 1/2"
Weight	2.75 lbs
