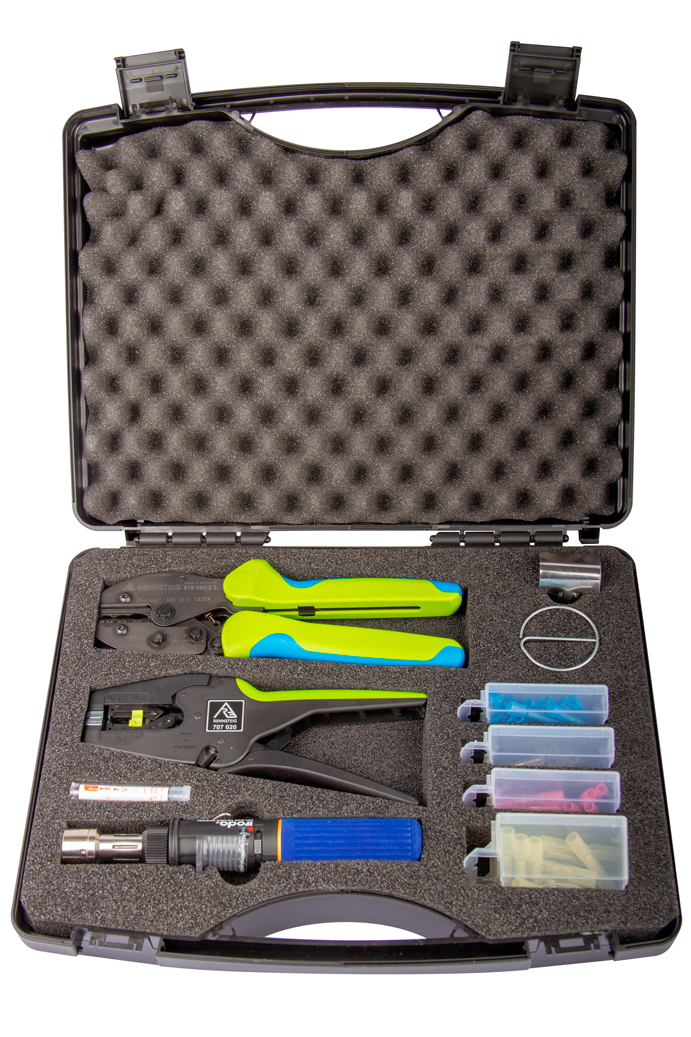

High Quality Crimp and Sealed Splice Repair Tool Kit

P/N 619 101-01 RT

InfoRequest quote and/or buying option available.

High Quality Crimp and Sealed Splice Tool Kit (comparable with Ford Wire Splice Tool Kit 164-R5903) for the maintenance and repair of electrical wiring harnesses. For example to use with terminals: 12089189, 12089190, 12089191, 88988379, 736 4107 997 00, 736 4107 998 00, 736 4107 999 00, 418-108, 418-107, 418-109.

Set Content

Type P/N Description
Splices

(Yellow)

Splice 12089191 for crimp tool
DURASEAL® (D-406-0003) for AWG 12 - 10 (similar to 4 - 6 SQ-MM)

(Blue)

Splice 12089190 for crimp tool

DURASEAL® (D-406-0002) for AWG 16 - 14 (similar to 1.5 - 2.5 SQ-MM)

(Salmon)

Splice 12089189 for crimp tool

DURASEAL® (D-406-0001) for AWG 22 - 16 (similar to 0.5 - 1.5 SQ-MM)
Crimp Tool

619 060-3 3 RT

Hand Crimping Tool for Crimping of Heatshrink Splices (Similar to AD-1522-1).

AWG 22 - 10 (similar to 0.5 - 6 SQ-MM)
Stripping Tool

707 040 RT
Automatic Self-adjusting Insulation Stripper (MultiStrip® 16) - 707 040

Automatic Self-adjusting Insulation Stripper (MultiStrip® 16)

AWG 28 - 6 (similar to 0.08 - 16 SQ-MM)

Heat Gun

680 950 HG

Heat Gun - 680 950 HG

For installation of thin wall, dual wall and adhesive lined heat shrink tubing and sleeves
