Crimp System Tool for SHIELD-KON® Series terminals

P/N Please click here.

Crimp System Tool for crimping of SHIELD-KON® RSK-CONNECTORS.

This crimp tool brings it all together:

  • High-precision ratchet mechanism for complete crimps
  • Parallel crimping performance for even crimps
  • 1.2 metric tons pressure at crimping face, with minimal hand effort
  • Interchangeable high-precision crimping die set
  • Interchangeable locator for precision positioning of terminals
  • Ensures accurate, solderless, electrical connections
  • Customized die sets on request

Sample picture of Shield-Kon® terminals

P/N Terminal P/N   Shielding diameter Die Set
624 1448 3 0 RT

RSK5101
RSK101

1.27 - 1.79 MM

Die Set 624 1448 3 0

Request a Quote!

624 1449 3 0 RT

RSK5101
RSK101

1.8 - 2.28 MM

Die Set 624 1449 3 0

Request a Quote!

624 1450 3 0 RT

RSK5201
RSK201

2.29 - 2.55 MM

Die Set 624 1450 3 0

Request a Quote!

624 1341 3 0 RT

RSK5201
RSK201

2.56 - 3.0 MM

Die Set 624 1341 3 0

Request a Quote!

624 1451 3 0 RT RSK5201
RSK201
3.01 - 3.34 MM Die Set 624 1451 3 0 Request a Quote!

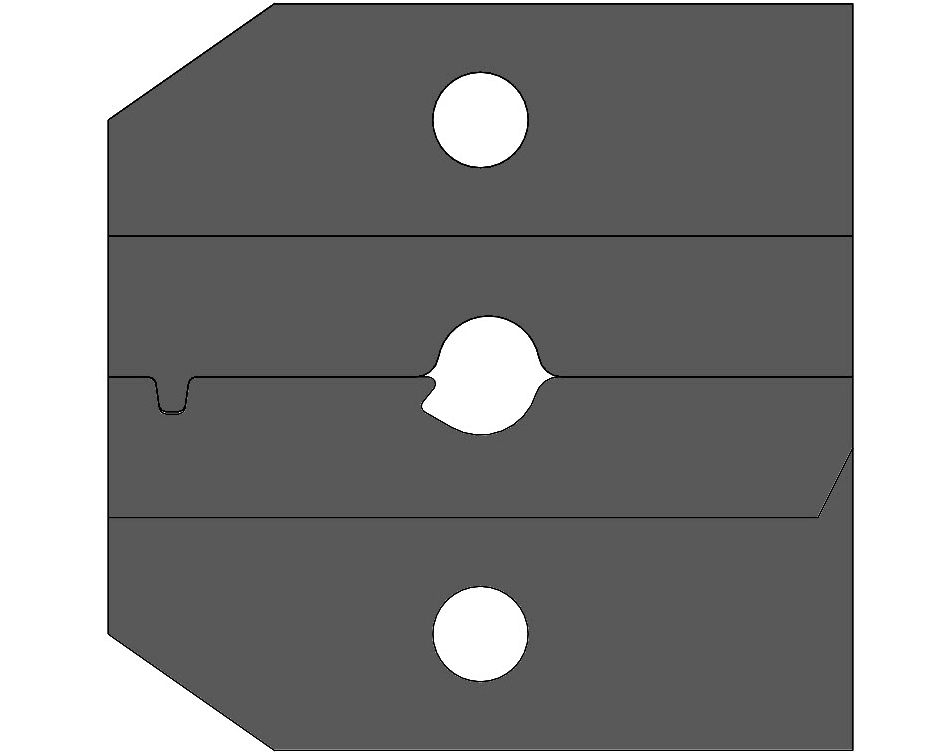

624 1452 3 0 RT RSK5201
RSK201
3.35 - 3.65 MM Die Set 624 1452 3 0 Request a Quote!
624 1453 3 0 RT RSK5301
RSK301
3.66 - 4.13 MM Die Set 624 1453 3 0 Request a Quote!
624 374 3 0 RT RSK5301
RSK301
4.14 -. 4.71 MM Die Set 624 374 3 0 Request a Quote!

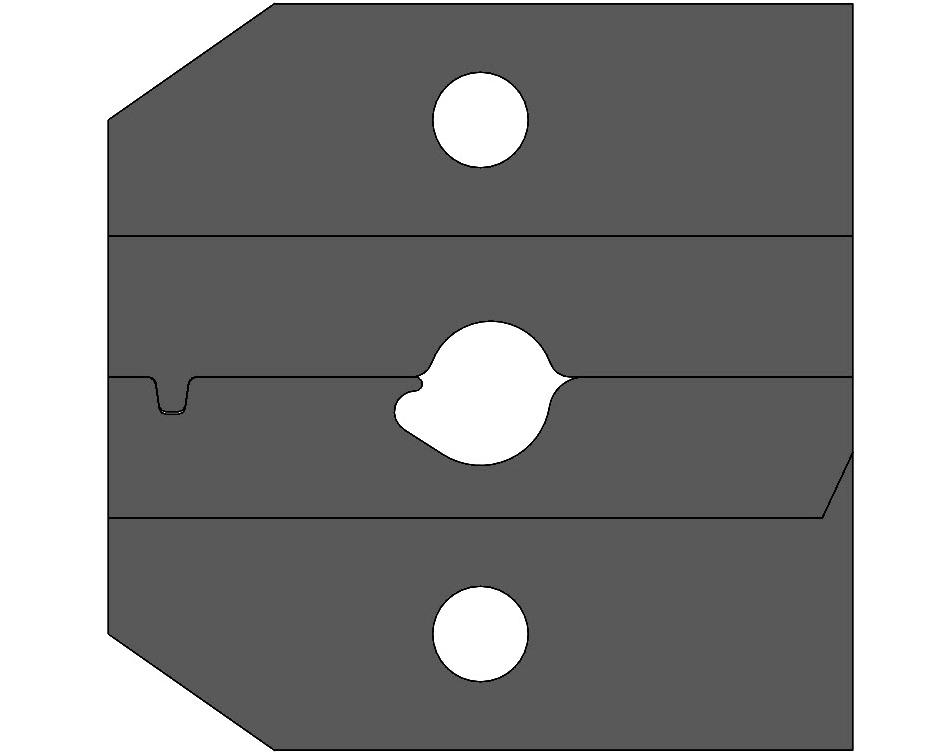

624 373 3 0 RT RSK5301
RSK301
4.72 - 5.12 MM Die Set 624 373 3 0 Request a Quote!
624 599 3 0 RT RSK5401
RSK401
5.13 - 5.86 MM Die Set 624 599 3 0 Request a Quote!
624 375 3 0 RT RSK5401
RSK401
5.87 - 6.36 MM Die Set 624 375 3 0 Request a Quote!
624 354 3 0 RT RSK5401
RSK401
6.37 - 7.0 MM Die Set 624 354 3 0 Request a Quote!
624 619 3 0 RT RSK5401
RSK401
7.01 - 7.62 MM Die Set 624 619 3 0 Request a Quote!
624 1425 3 0 RT

GSC101 / 128 /
149 / 156 / 175

  Die Set 624 1425 3 0 Request a Quote!
624 1426 3 0 RT

GSC187 / 194 /
199 / 205 / 219 /
225 / 232

  Die Set 624 1426 3 0 Request a Quote!
624 1427 3 0 RT GSC261 / 275 /
281 / 287 / 297
  Die Set 624 1427 3 0 Request a Quote!
624 1428 3 0 RT GSC312 / 327 /
348
  Die Set 624 1428 3 0 Request a Quote!
624 1429 3 0 RT GSC359 / 375   Die Set 624 1429 3 0 Request a Quote!
624 1430 3 0 RT GSC405 / 415 /
425
  Die Set 624 1430 3 0 Request a Quote!
625 01440 3 0 RT GSC460 / 500   Die Set 625 01440 3 0 Request a Quote!



Model No. Crimp System Tool PEW 12
Finish Black-Oxide
Handles Tow-Component
Length 7 7/8"
Weight 1.4 lbs
